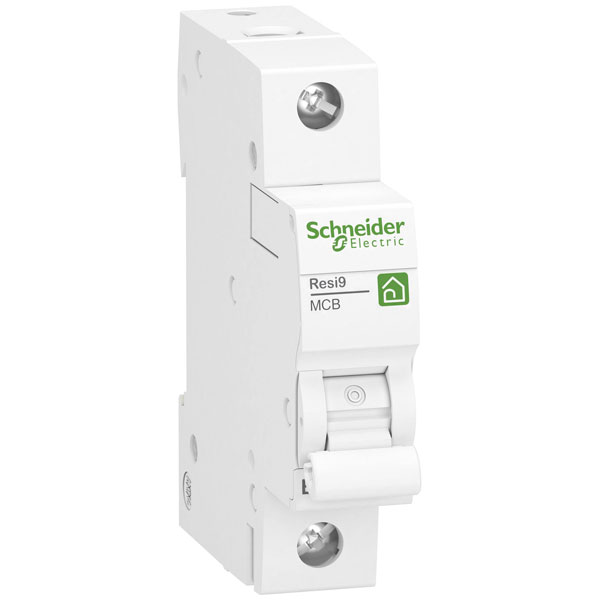

Schneider Electric manufactures the R9F23110 circuit breaker, which is a single-phase device rated for 10 A and 230 V. This product is designed to provide reliable overcurrent protection in electrical installations. It is commonly used in residential and commercial environments to safeguard electrical circuits.
| Type |
Circuit breaker |
| Current Rating |
10a |
| Voltage Rating - AC |
230V AC |
| Tripping Characteristics |
B Curve |
| Additional equipment possible |
false |
| Ambient temperature during operating |
-25 - 60°C |
| Built-in depth |
44mm |
| Colour |
Multicolour |
| Concurrently switching neutral conductor |
false |
| Connectable conductor cross section multi-wired |
1 - 16mm² |
| Connectable conductor cross section solid-core |
1 - 25mm² |
| Current limiting class |
3 |
| Current Ratng |
10A |
| Degree of protection (IP) |
IP20 |
| Depth |
75mm |
| Dim |
(W x H x D) 18 x 85 x 75 mm |
| Explosion-proof |
false |
| Flush-mounted installation |
false |
| Frequency |
50 - 60Hz |
| Height |
85mm |
| Model |
1-phase |
| Number of pins |
1 |
| Number of Poles |
1 |
| Number of poles (total) |
1 |
| Number of protected poles |
1 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Power loss |
1.9W |
| Rated current |
10A |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
440V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
6kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
N/A |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
N/A |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
N/A |
| Rated voltage |
230V |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Width |
18mm |
| Width in number of modular spacings |
1 |
