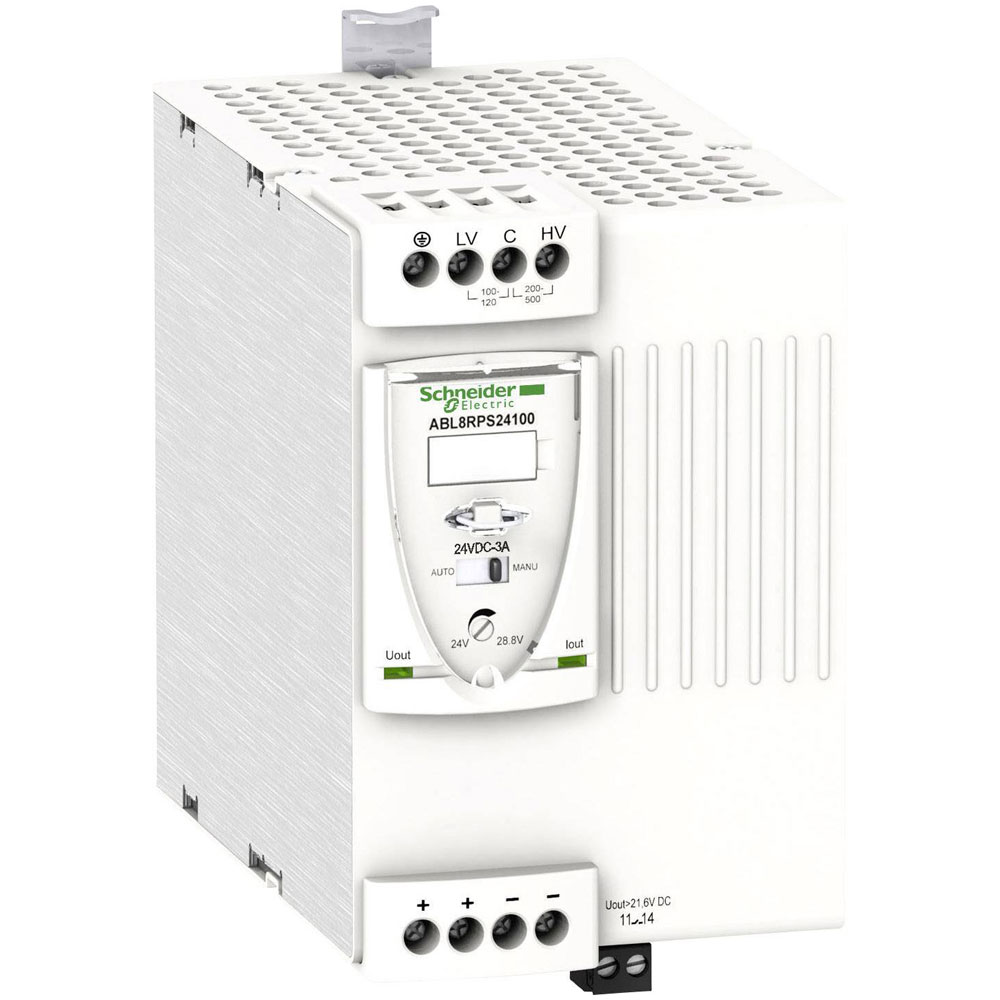

Schneider Electric's ABL8RPS24100 is a rail-mounted power supply unit specifically designed for DIN rail systems, providing a reliable 10 A output. This industrial power supply module is suitable for various applications requiring consistent power distribution in automation and control systems. Ideal for enhancing performance and efficiency in demanding environments, it ensures durable and efficient energy supply.
| Type |
Rail mounted PSU (DIN) |
| Output Voltage |
24 V DC |
| Output Current |
10A |
| 1st secondary output voltage |
24 - 28.8V |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
N/A |
| Built-in width |
N/A |
| Connection |
Punchdown block |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
145mm |
| Direct mounting possible |
true |
| Height |
143mm |
| Input voltage (max.) |
500V |
| Max. output current |
10A |
| Max. output current 1 |
10A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Min. input voltage |
100V |
| Nominal value output current 1 |
10A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Operating temperature (max.) |
60°C |
| Operating temperature (min.) |
-25°C |
| Output voltage stabilized |
true |
| Performance level according to EN ISO 13849-1 |
None |
| Power Consumption |
N/A |
| Power Output |
240W |
| Rated supply voltage AC 50 Hz |
100 - 500V |
| Rated supply voltage AC 60 Hz |
100 - 500V |
| Rated supply voltage DC |
N/A |
| Secondary voltage adjustable |
true |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
None |
| Stabilized |
true |
| Suitable for distribution board |
false |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
true |
| Type of electric connection |
Screw connection |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
false |
| Width |
86mm |
| Width in number of modular spacings |
N/A |
