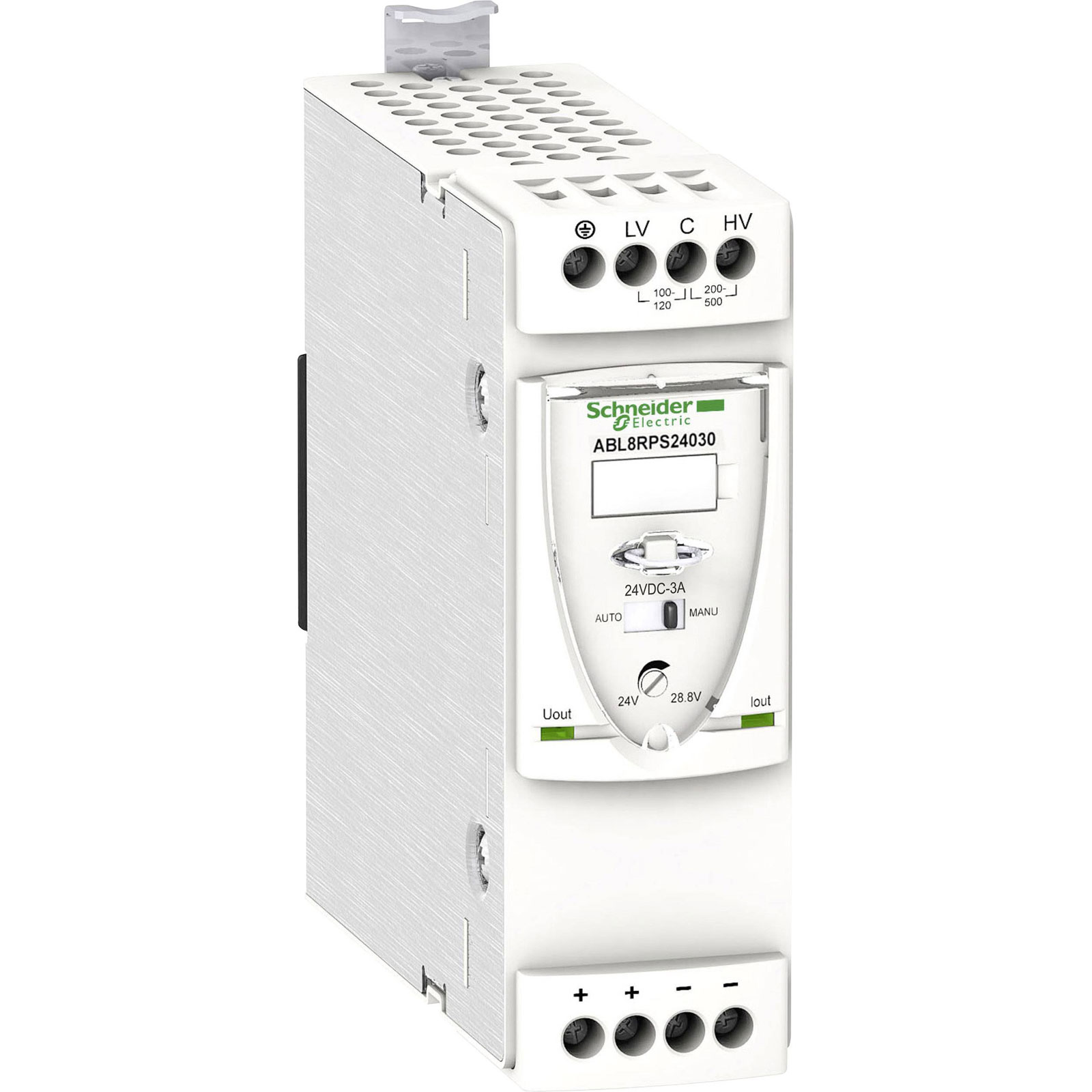

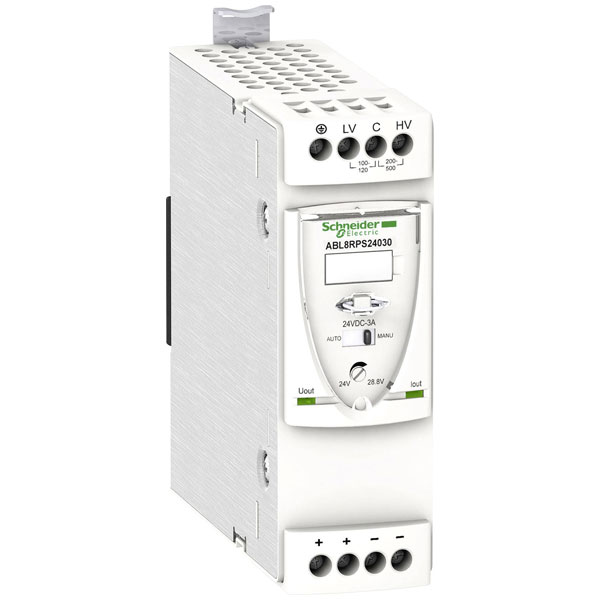

Schneider Electric ABL8RPS24030 PSU 72W 24VDC 3A DIN rail mount

Schneider Electric
Order Code:

06-5363

Brand: Schneider Electric MPN: ABL8RPS24030 EAN-13: 3389119405607
Qty Unit Price (Ex VAT)
1+ £142.39
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

Schneider Electric's ABL8RPS24030 is a DIN rail mounted power supply unit, delivering 3 A of current and 72 W of power. Ideal for industrial applications, this PSU ensures reliable operation in automation and control systems. Its compact design allows for seamless integration into existing rail-mounted setups.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Output Current 3A
Power Rating 72W
1st secondary output voltage 24 - 28.8V
2nd secondary output voltage N/A
3rd secondary output voltage N/A
Built-in height N/A
Built-in width N/A
Connection Punchdown block
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 125mm
Direct mounting possible true
Height 143mm
Input voltage (max.) 500V
Max. output current 3A
Max. output current 1 3A
Max. output current 2 N/A
Max. output current 3 N/A
Min. input voltage 100V
Nominal value output current 1 3A
Nominal value output current 2 N/A
Nominal value output current 3 N/A
Nominal value output voltage 1 24V
Nominal value output voltage 2 N/A
Nominal value output voltage 3 N/A
Operating temperature (max.) 60°C
Operating temperature (min.) -25°C
Output voltage stabilized true
Performance level according to EN ISO 13849-1 None
Power Consumption N/A
Power Output 72W
Rated supply voltage AC 50 Hz 100 - 500V
Rated supply voltage AC 60 Hz 100 - 500V
Rated supply voltage DC N/A
Secondary voltage adjustable true
Short-circuit-proof true
SIL according to IEC 61508 None
Stabilized true
Suitable for distribution board false
Suitable for rail mounting true
Suitable for safety functions true
Type of electric connection Screw connection
Voltage type (supply voltage) AC/DC
Wall mounting possible false
Width 45mm
Width in number of modular spacings N/A
