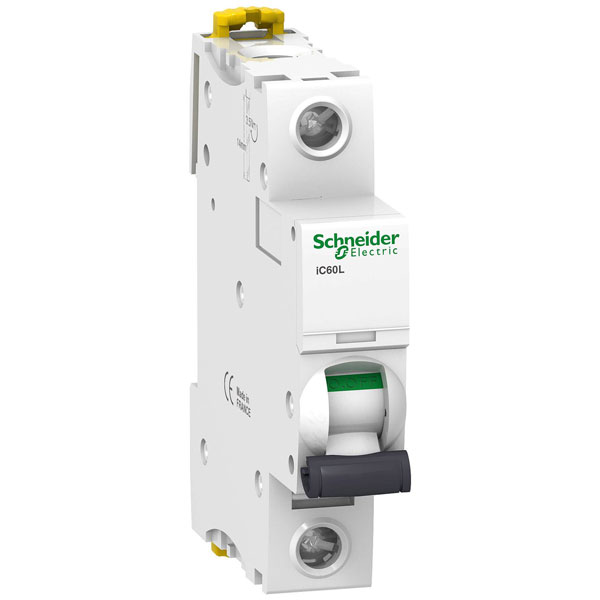

Schneider Electric manufactures the A9F92102 circuit breaker, designed for over-current and short-circuit protection. This miniature circuit breaker, rated at 2 A and 230 V, ensures reliable installation protection in electrical systems. It is typically used in both residential and commercial settings to safeguard electrical circuits.
| Type |
Circuit breaker |
| Additional equipment possible |
true |
| Ambient temperature during operating |
-35 - 70°C |
| Built-in depth |
44.5mm |
| Concurrently switching neutral conductor |
false |
| Connectable conductor cross section multi-wired |
1 - 16mm² |
| Connectable conductor cross section solid-core |
1 - 25mm² |
| Current limiting class |
3 |
| Current Ratng |
2A |
| Degree of protection (IP) |
IP20 |
| Dim |
(L x W x H) 78.5 x 18 x 85 mm |
| Explosion-proof |
false |
| Factory colour |
White |
| Flush-mounted installation |
false |
| Frequency |
50 - 60Hz |
| Height |
85mm |
| Length |
78.5mm |
| Number of Poles |
1 |
| Number of poles (total) |
1 |
| Number of protected poles |
1 |
| Overvoltage category |
4 |
| Pollution degree |
3 |
| Power loss |
1.9W |
| Rated current |
2A |
| Rated impulse withstand voltage Uimp |
6kV |
| Rated insulation voltage Ui |
500V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
15kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
N/A |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
100kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
N/A |
| Rated voltage |
230V |
| Release characteristic |
Z |
| Voltage Rating |
230V |
| Voltage type |
AC/DC |
| Width |
18mm |
| Width in number of modular spacings |
1 |
