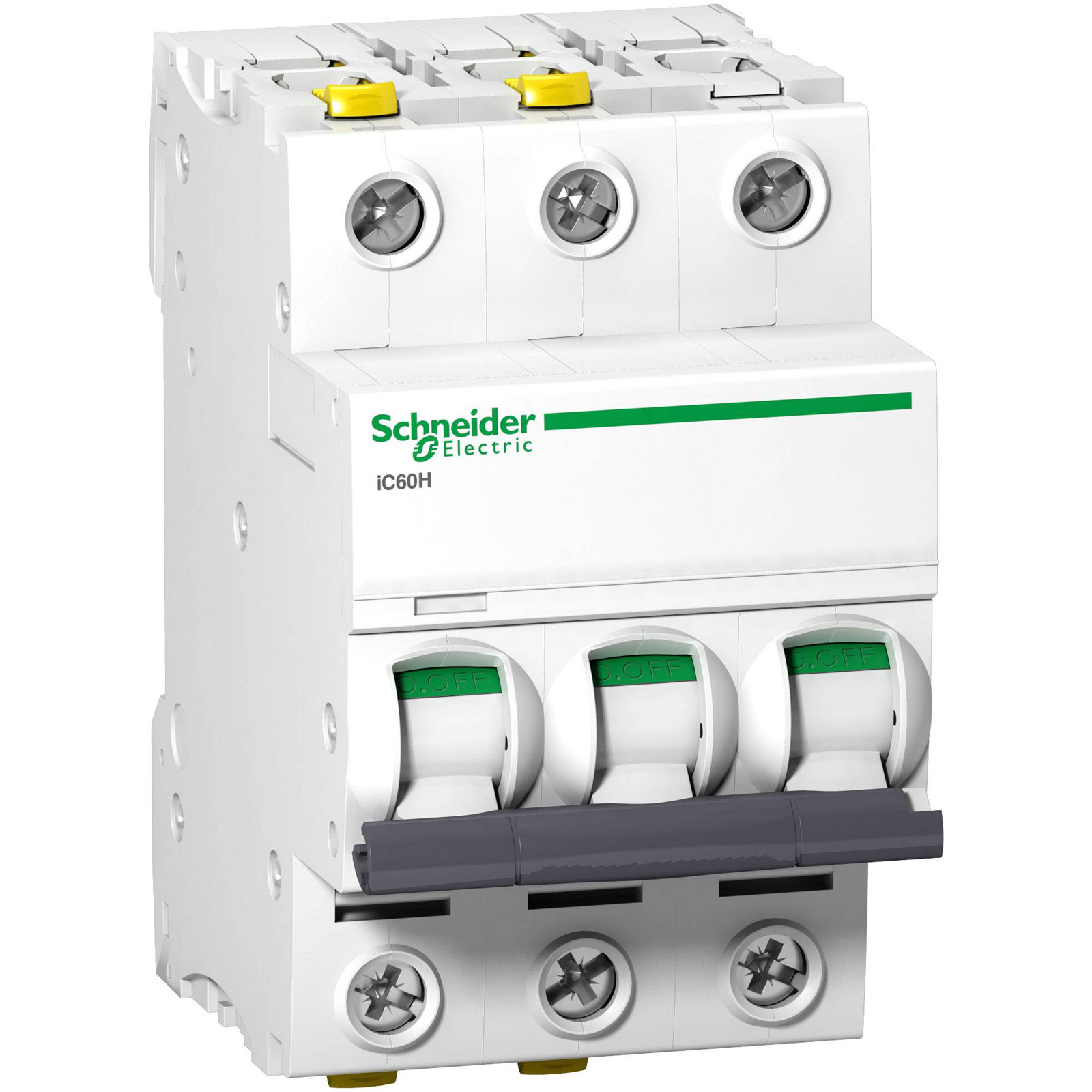

The Schneider Electric A9F07310 is a miniature circuit breaker offering over-current protection and short-circuit protection for electrical installations. With a rating of 10 A and 400 V, it ensures reliable operation in residential, commercial, or industrial settings. This product is suitable for safeguarding circuits against faults, enhancing electrical safety and performance.
| Type |
Circuit breaker |
| Additional equipment possible |
true |
| Ambient temperature during operating |
-35 - 70°C |
| Built-in depth |
44.5mm |
| Concurrently switching neutral conductor |
false |
| Connectable conductor cross section multi-wired |
1 - 16mm² |
| Connectable conductor cross section solid-core |
1 - 25mm² |
| Current limiting class |
3 |
| Current Ratng |
10A |
| Degree of protection (IP) |
IP20 |
| Dim |
(L x W x H) 78.5 x 54 x 91 mm |
| Explosion-proof |
false |
| Factory colour |
White |
| Flush-mounted installation |
false |
| Frequency |
50 - 60Hz |
| Height |
91mm |
| Length |
78.5mm |
| Number of Pins |
3 |
| Number of poles (total) |
3 |
| Number of protected poles |
3 |
| Overvoltage category |
4 |
| Pollution degree |
3 |
| Power loss |
2.3W |
| Rated current |
10A |
| Rated impulse withstand voltage Uimp |
6kV |
| Rated insulation voltage Ui |
500V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
N/A |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
10kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
30kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
15kA |
| Rated voltage |
400V |
| Release characteristic |
C |
| Voltage Rating |
400V |
| Voltage type |
AC/DC |
| Width |
54mm |
| Width in number of modular spacings |
3 |
