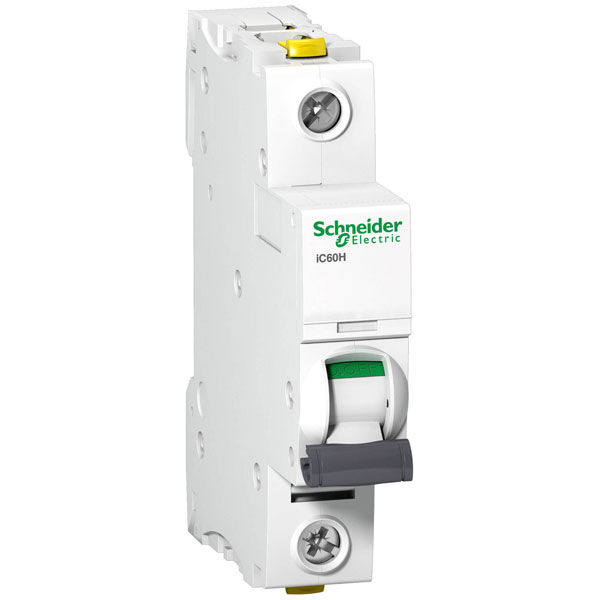

Schneider Electric A9F06110 iC60H Circuit Breaker 10A 230V 1p B10

Schneider Electric
Order Code:

06-5273

Brand: Schneider Electric MPN: A9F06110 EAN-13: 3606480437793
Qty Unit Price (Ex VAT)
1+ £8.47
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
35 in stock, despatched in 4 working days

The Schneider Electric A9F06110 is a miniature circuit breaker designed to provide short-circuit and over-current protection. It operates at 10 A and 230 V, making it ideal for residential and commercial electrical installations. Its reliable protection features help prevent electrical hazards and ensure the safety of electrical systems.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -35 - 70°C
Built-in depth 44.5mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 16mm²
Connectable conductor cross section solid-core 1 - 25mm²
Current limiting class 3
Current Ratng 10A
Degree of protection (IP) IP20
Dim (L x W x H) 78.5 x 18 x 91 mm
Explosion-proof false
Factory colour White
Flush-mounted installation false
Frequency 50 - 60Hz
Height 91mm
Length 78.5mm
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 4
Pollution degree 3
Power loss 2.3W
Rated current 10A
Rated impulse withstand voltage Uimp 6kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V N/A
Rated voltage 230V
Release characteristic B
Voltage Rating 230V
Voltage type AC/DC
Width 18mm
Width in number of modular spacings 1
