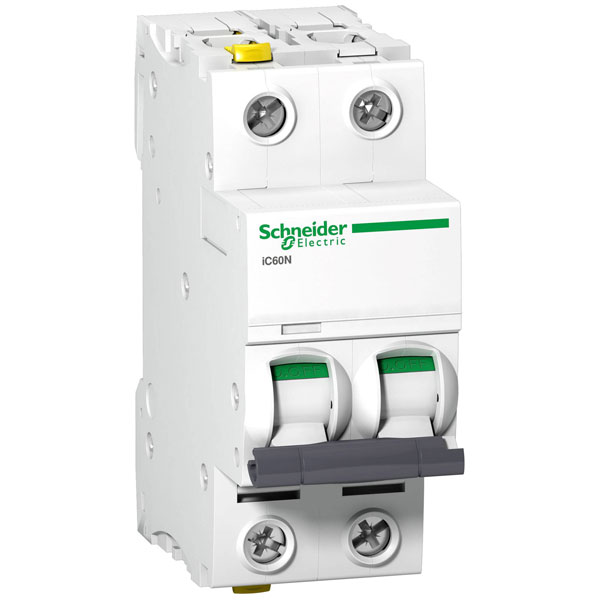

The Schneider Electric A9F03210 is a circuit breaker designed for over-current and short-circuit protection with a 10 A rating and a 400 V capacity. It features LS switching for reliable installation protection and is ideal for both residential and commercial electrical systems. This miniature circuit breaker ensures safety and efficiency in managing electrical currents and installations.
| Type |
Circuit breaker |
| Current Rating |
10a |
| Voltage Rating - AC |
400V AC |
| Tripping Characteristics |
B Curve |
| Additional equipment possible |
true |
| Ambient temperature during operating |
-35 - 70°C |
| Built-in depth |
44.5mm |
| Concurrently switching neutral conductor |
false |
| Connectable conductor cross section multi-wired |
1 - 16mm² |
| Connectable conductor cross section solid-core |
1 - 25mm² |
| Current limiting class |
3 |
| Current Ratng |
10A |
| Degree of protection (IP) |
IP20 |
| Dim |
(L x W x H) 78.5 x 36 x 91 mm |
| Explosion-proof |
false |
| Factory colour |
White |
| Flush-mounted installation |
false |
| Frequency |
50 - 60Hz |
| Height |
91mm |
| Length |
78.5mm |
| Number of pins |
2 |
| Number of poles (total) |
2 |
| Number of protected poles |
2 |
| Overvoltage category |
4 |
| Pollution degree |
3 |
| Power loss |
2.3W |
| Rated current |
10A |
| Rated impulse withstand voltage Uimp |
6kV |
| Rated insulation voltage Ui |
500V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
N/A |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
6kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
20kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
10kA |
| Rated voltage |
400V |
| Voltage Rating |
400V |
| Voltage type |
AC/DC |
| Width |
36mm |
| Width in number of modular spacings |
2 |
