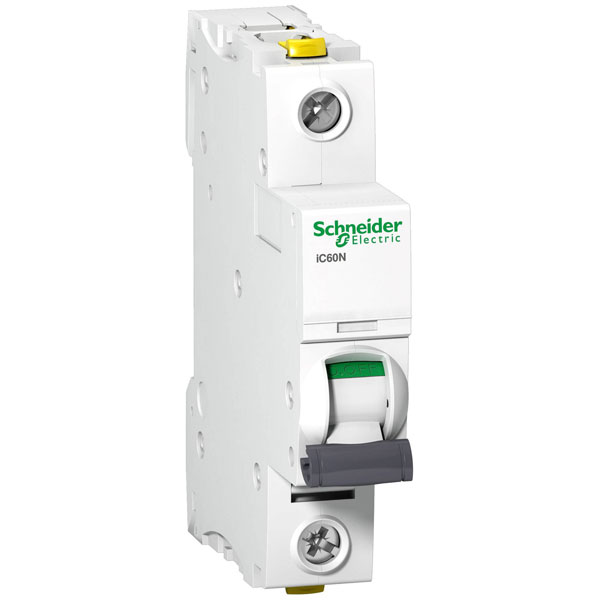

Schneider Electric A9F03116 Circuit Breaker 16A 230V 10kA IP20 1pc

The Schneider Electric A9F03116 is a circuit breaker designed for over-current and short-circuit protection in electrical installations, with a current rating of 16 A and operating voltage of 230 V. This miniature circuit breaker is suitable for residential and commercial applications, serving as an essential component in protecting electrical circuits. Its compact design ensures easy installation and reliable performance in safeguarding electrical systems.

Type	Circuit breaker
Current Rating	16A
Voltage Rating - AC	230V AC
Tripping Characteristics	B Curve
Additional equipment possible	true
Ambient temperature during operating	-35 - 70°C
Built-in depth	44.5mm
Concurrently switching neutral conductor	false
Connectable conductor cross section multi-wired	1 - 16mm²
Connectable conductor cross section solid-core	1 - 25mm²
Current limiting class	3
Current Ratng	16A
Degree of protection (IP)	IP20
Dim	(L x W x H) 78.5 x 18 x 91 mm
Explosion-proof	false
Factory colour	White
Flush-mounted installation	false
Frequency	50 - 60Hz
Height	91mm
Length	78.5mm
Number of pins	1
Number of Poles	1
Number of poles (total)	1
Number of protected poles	1
Overvoltage category	4
Pollution degree	3
Power loss	2.4W
Rated current	16A
Rated impulse withstand voltage Uimp	6kV
Rated insulation voltage Ui	500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	N/A
Rated voltage	230V
Voltage Rating	230V
Voltage type	AC/DC
Weight	0
Width	18mm
Width in number of modular spacings	1
