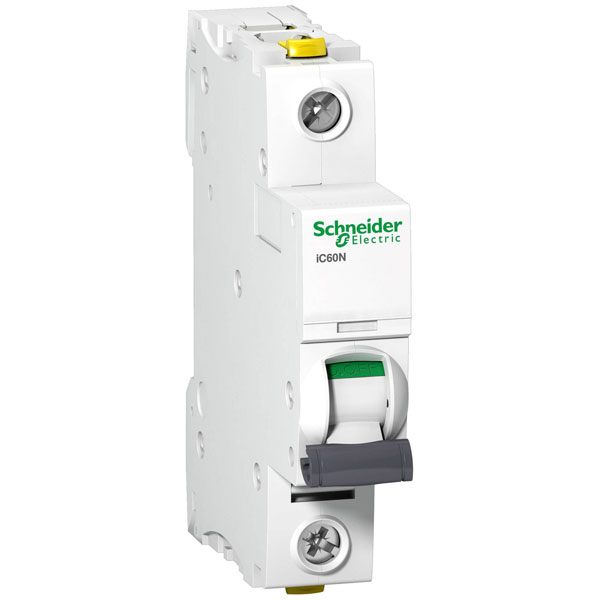

Schneider Electric A9F03113 Acti9 Circuit Breaker 13A 230V IP20 10000A 18mm

Schneider Electric
Order Code:

06-5245

Brand: Schneider Electric MPN: A9F03113 EAN-13: 3606480439681
Qty Unit Price (Ex VAT)
1+ £7.09
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
62 in stock, despatched in 4 working days

The Schneider Electric A9F03113 circuit breaker, rated at 13 A and 230 V, provides reliable installation protection against short circuits and over-currents. This miniature circuit breaker is ideal for safeguarding electrical circuits in residential and commercial installations. It ensures smooth operation and enhances safety by preventing electrical faults.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -35 - 70°C
Built-in depth 44.5mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 16mm²
Connectable conductor cross section solid-core 1 - 25mm²
Current limiting class 3
Current Ratng 13A
Degree of protection (IP) IP20
Dim (L x W x H) 78.5 x 18 x 91 mm
Explosion-proof false
Factory colour White
Flush-mounted installation false
Frequency 50 - 60Hz
Height 91mm
Length 78.5mm
Number of Poles 1
Number of poles (total) 1
Number of protected poles 1
Overvoltage category 4
Pollution degree 3
Power loss 2.3W
Rated current 13A
Rated impulse withstand voltage Uimp 6kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V N/A
Rated voltage 230V
Release characteristic B
Voltage Rating 230V
Voltage type AC/DC
Width 18mm
Width in number of modular spacings 1
