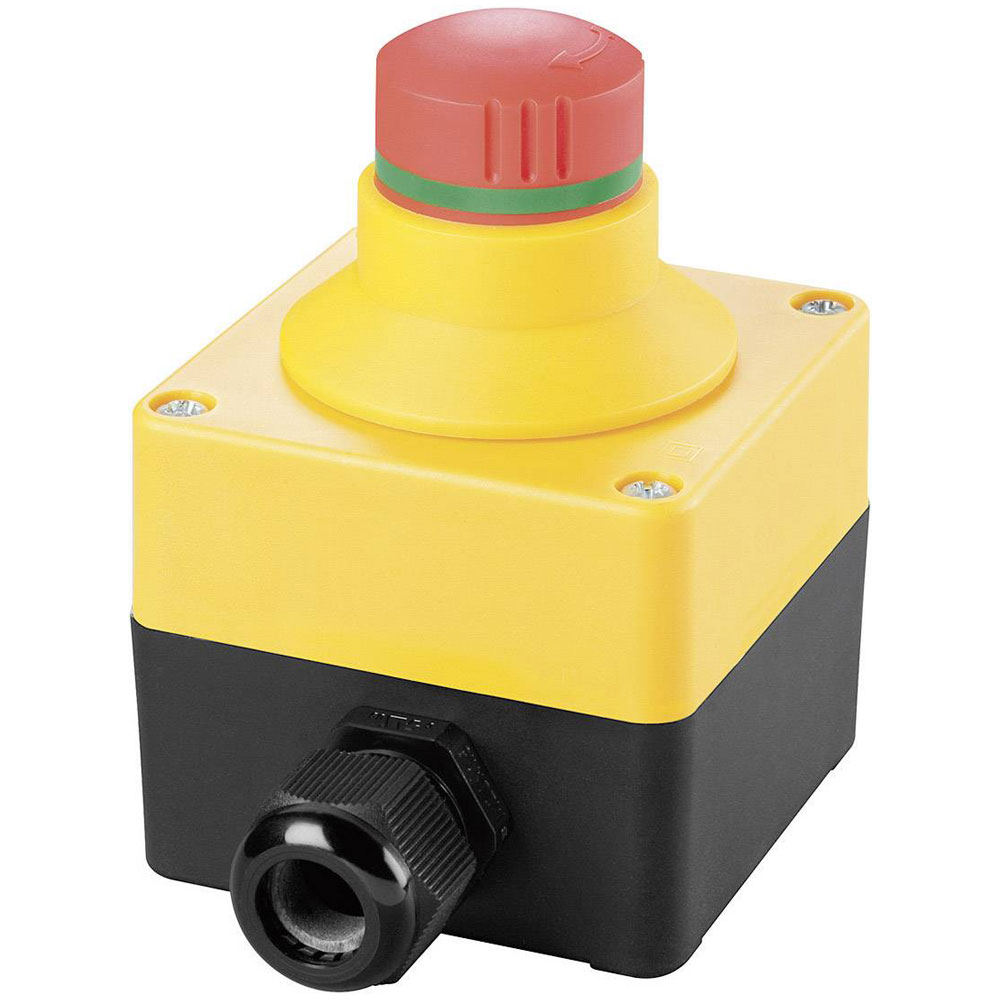

Schlegel SIL22_QRBLUV_118308 Kill Switch 250V 16A IP65 2 Breakers

Schlegel
Order Code:

12-8981

Brand: Schlegel MPN: SIL22_QRBLUV_118308 EAN-13: 2050000225857
Qty Unit Price (Ex VAT)
1+ £69.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 available to back orderBack-order availability date - 13/12/2025

The Schlegel SIL22_QRBLUV_118308 is a kill switch with a voltage rating of 250 V AC and 16 A current capacity, featuring two breakers with IP65 protection. It is typically used for emergency power off applications in industrial settings. The switch is known for its durability and reliability in ensuring safety through immediate power cut-off.
Type Kill switch
Bounce duration
< 9ms
Bulb Type LED (monochrome)
Colour Yellow
Contact Resistance
20 mΩ
Contact Type 2 breakers
Durability (Tambient 20 ºC) 50000 cycles
Electrical lifespan (Contactor b. rated load) 1 x 106 operating cycles
Functions latch
IP Rating IP65
Lighting type Circular lighting
Max. permanent current 16A
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute 1 2 forced NC contacts, galvanically isolated
Print motif Arrow symbol
Switching Capacity (acc. to IEC/EN 60947-5-1: Usage category DC13 Q600) AC15 = 250 V/3 A/440 V/1.6 A, DC13 = 440 V/0.12 A/ 250 V/0.2 A/ 125 V/0.4 A/ 60 V/1 A/ 24 V/2A
Switching current (max.) 16A
Switching Voltage 250V AC
Temperature Range -25 to +55 ºC°C
Unlocking mechanism Turn
