Schaffner EMC FN282-4-06 4A Faston Compact IEC inlet Filter

Image Representative of Range

Schaffner EMC FN282-4-06 4A Faston Compact IEC inlet Filter

Schaffner EMC
MPN
FN 282-4-06
EAN-13
2050001666864
Order Code
58-5484
Country of Origin
Thailand
View Full Product Range (2)
Qty Unit Price (Ex VAT)
1+ £40.82
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 4 weeks

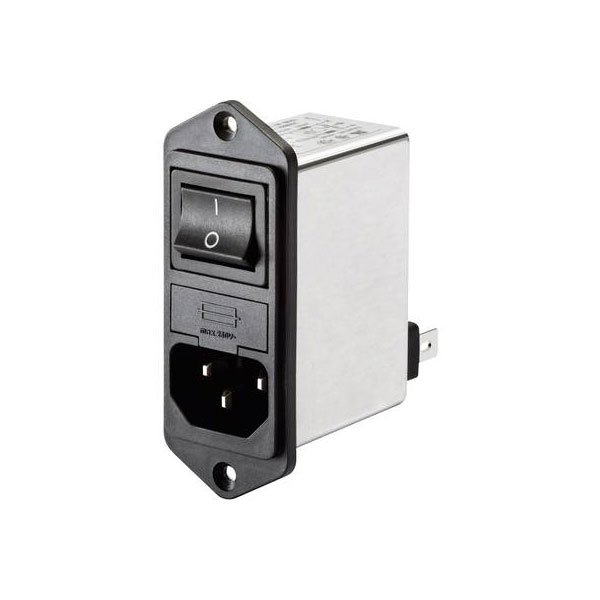

A 4A small form factor power entry module that has a top/bottom flange mount configuration. The module is comprised of an IEC inlet, mains filter with dual fuse and a 2-pole rocker switch. Suitable applications include portable equipment, consumer goods, EDP and office equipment, 1-phase power supplies, switch mode power supplies, test and measurement equipment.


  • High conducted attenuation performance
  • Connection blade terminal 6.3mm
  • Fuse Ø5 x 20mm
  • Flammability better than UL 94V-2
Type Line filter
Current Rating 4A
Dimensions 32 x 82 x 43.1mm
Frequency Range 50 to 400Hz
IP Rating IP40
Maximum Temperature +85°C
Min. temperature -25°C
