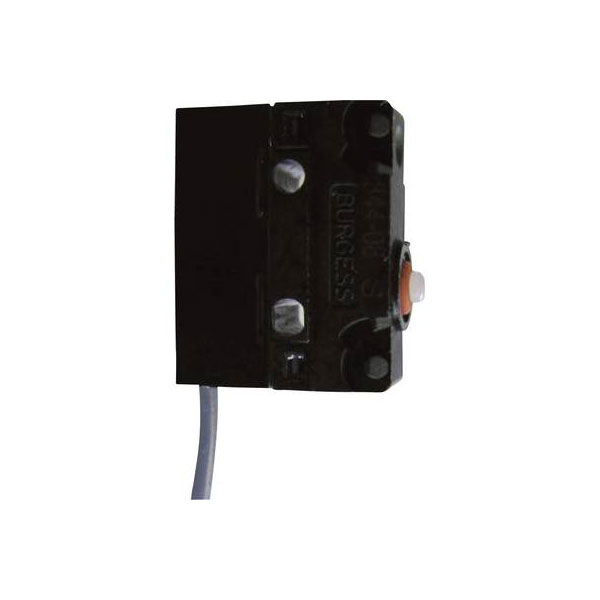

Saia V4NCS2-0,5M Microswitch 250V 5A IP67 Sub-miniature Momentary

Image Representative of Range

Saia V4NCS2-0,5M Microswitch 250V 5A IP67 Sub-miniature Momentary

Saia
Order Code:

10-5151

Brand: Saia MPN: V4NCS2-0,5M EAN-13: 2050000965920
Qty Unit Price (Ex VAT)
1+ £6.16
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 14 days

The Saia V4NCS2-0,5M microswitch is a momentary, IP67-rated switch designed to handle 250 V AC and 5 A. It features a single changeover contact, ideal for applications in demanding environments where moisture and dust protection are crucial. Common uses include industrial control systems and precision machinery requiring reliable, compact switch solutions.
Type Microswitch
Switch Function momentary
Current Rating (Amps) 5A
Actuating Force 2.5N
Contact Material Ag
Contact Type 1 change-over
Dim (L x W x H) 19.85 x 6.4 x 15 mm
Height 15mm
IP Rating IP67
Length 19.85mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 V4NCSK2-0.5M
Misc Attribute 2 1 changeover
Switch position 1 x On/(On)
Switching Voltage 250V AC
Temperature Range -40 - +85°C
Width 6.4mm
