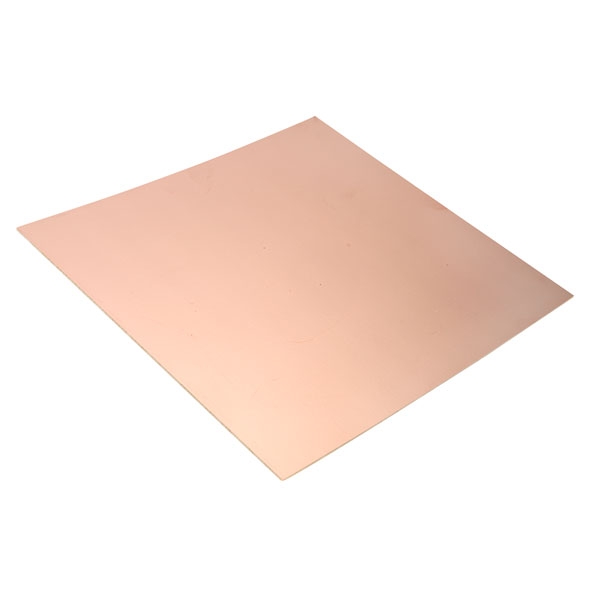

Single-sided copper-clad printed circuit board, 233 x 220mm, made from SRBP - a paper-based material.
- Excellent for low-cost printed circuit boards
- Easier to drill than epoxy glass fibre
- Results in longer life for drills and cutting tools
- Suitable etchant ferric chloride solution
- 35 Micron copper thickness
- 150°C heat resistance
| Board Material |
Synthetic resin bonded paper |
| Number of Sides |
1 |
| Length |
233mm |
| Width |
220mm |
