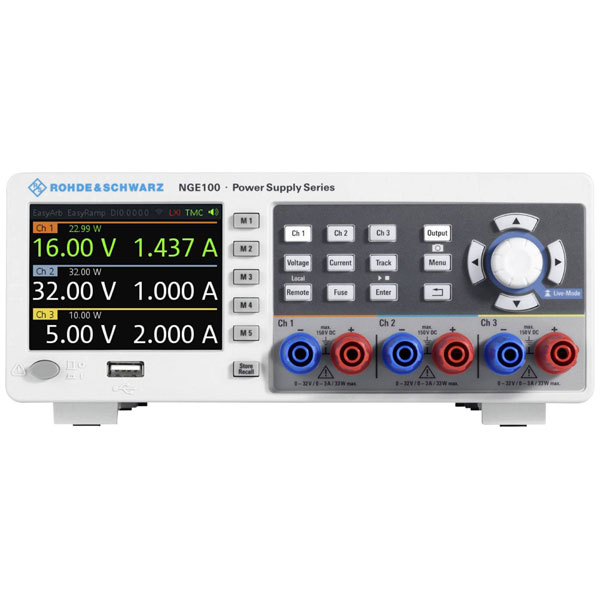

Rohde & Schwarz 5601.3800.03 NGE103B Bench PSU 0-32V 0-3A 100W USB

Rohde & Schwarz
Order Code:

10-4942

Brand: Rohde & Schwarz MPN: 5601.3800.03 EAN-13: 4250138108048
Qty Unit Price (Ex VAT)
1+ £1308.01
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 3 weeks

The Rohde & Schwarz NGE103B is an adjustable bench PSU offering 0 to 32 V DC at up to 3 A, with a total power capability of 100 W. It features USB connectivity, OVP, and remote control, making it ideal for laboratory and industrial applications. With three outputs, this programmable lab power supply is suited for precise voltage testing and development environments.
Type Bench PSU (adjustable voltage)
Number of Outputs 3
Length 280mm
Calibrated to Manufacturer's standards (no certificate)
Dim (L x W x H) 280 x 222 x 88 mm
Height 88mm
Interfaces USB
Mains control 0.1%
Mains Supply IEC 320 C14
Max. output current 3A
Misc Attribute NGE103B
Output 4 mm socket
Output current (min.) 0A
Output current 2 (max.) 3A
Output current 2 (min.) 0A
Output current 3 (max.) 3A
Output current 3 (min.) 0A
Output voltage (max.) 32V DC
Output voltage (min.) 0V DC
Output voltage 2 (max.) 32V DC
Output voltage 2 (min.) 0V DC
Output voltage 3 (max.) 32V DC
Output voltage 3 (min.) 0V DC
Power 100W
Residual ripple 1.5mV
Width 222mm
