Rohde & Schwarz 5601.3800.02 NGE102B Bench PSU 0-32V 0-3A 66W USB OVP

Rohde & Schwarz
Order Code:

10-4941

Brand: Rohde & Schwarz MPN: 5601.3800.02 EAN-13: 4250138108031
Qty Unit Price (Ex VAT)
1+ £1106.78
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back order

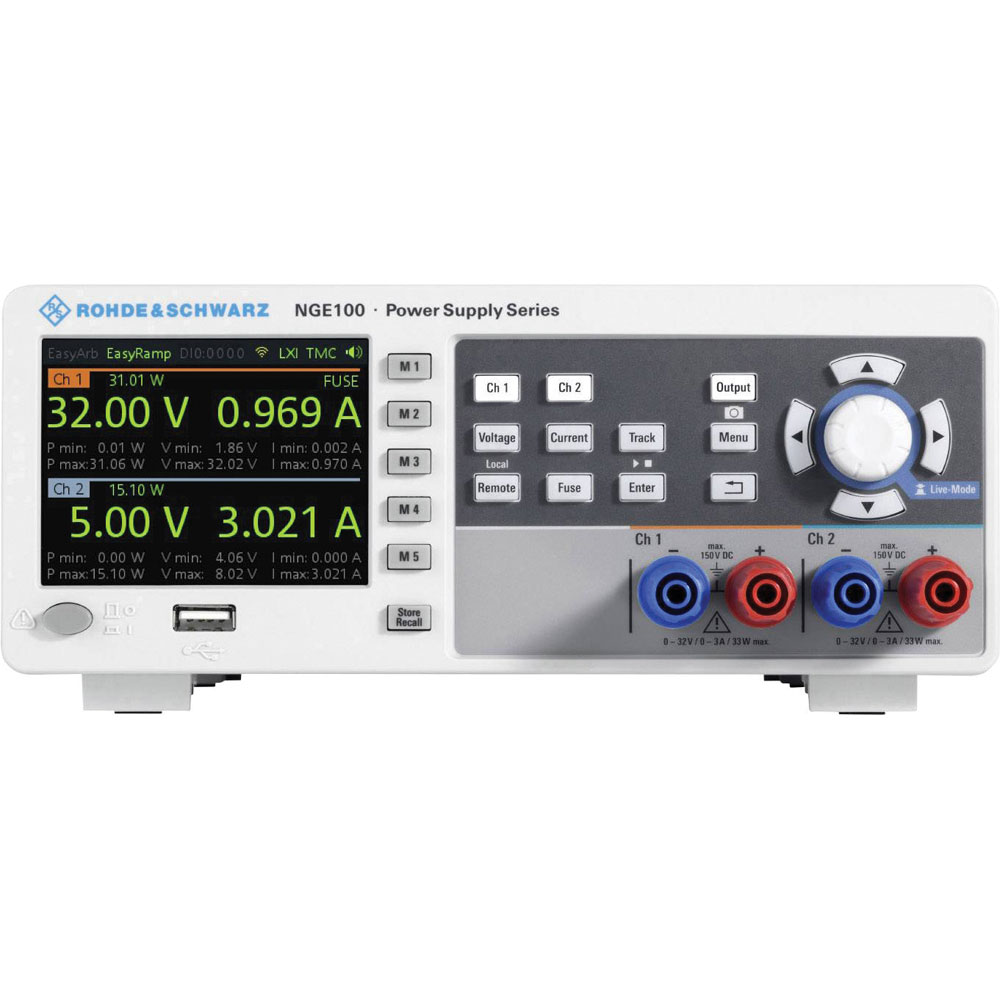

The Rohde & Schwarz NGE102B is a bench PSU with adjustable voltage from 0 to 32 V DC and a current range of 0 to 3 A, featuring two outputs and a total power of 66 W. Designed for laboratory use, it is remote-controlled and equipped with USB connectivity and over-voltage protection (OVP). This power supply unit is ideal for application in programmable laboratory, industrial, and other demanding environments requiring precise power management.
Type Bench PSU (adjustable voltage)
Number of Outputs 2
Length 280mm
Calibrated to Manufacturer's standards (no certificate)
Dim (L x W x H) 280 x 222 x 88 mm
Height 88mm
Interfaces USB
Mains control 0.1%
Mains Supply IEC 320 C14
Max. output current 3A
Misc Attribute NGE102B
Output 4 mm socket
Output current (min.) 0A
Output current 2 (max.) 3A
Output current 2 (min.) 0A
Output voltage (max.) 32V DC
Output voltage (min.) 0V DC
Output voltage 2 (max.) 32V DC
Output voltage 2 (min.) 0V DC
Power 66W
Residual ripple 1.5mV
Width 222mm
