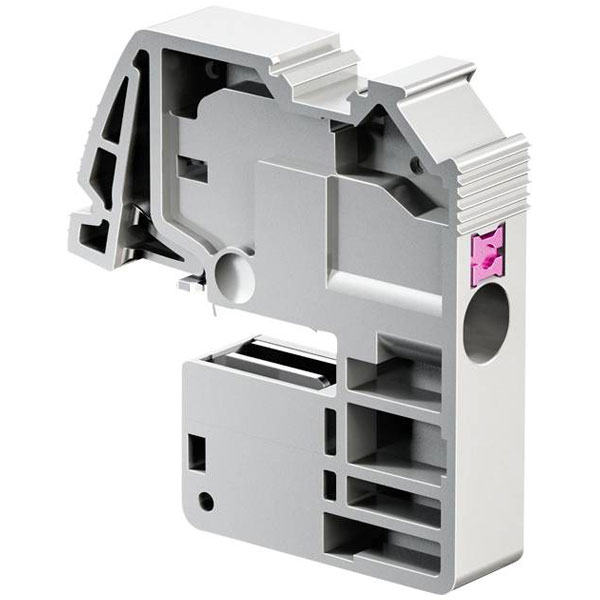

Rittal 3450505 Feeder Terminal Push-in Connector Grey 1pc

Rittal
Extended range
Order Code:

06-4437

Brand: Rittal MPN: 3450505
Qty Unit Price (Ex VAT)
1+ £1.46
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 8 days

Rittal's 3450505 is a grey feeder terminal with a push-in connector, designed for secure and efficient continuity in electrical systems. Typically used in switchboard and serial terminal applications, it facilitates reliable wiring connections. The robust design ensures high performance in demanding electrical environments.
Type Feeder terminal
Width 9mm
AWG (min.) 20
AWG max. 10
Compatible with (details) CU busbars 5 mm
Connection Push-in connector
Cross section (flexible) (max.) 4mm²
Cross section (flexible) (min.) 0.50mm²
Cross section (inflexible) (max.) 4mm²
Cross section (inflexible) (min.) 0.50mm²
Dim (L x W x H) 41 x 9 x 40 mm
Factory colour Grey
Height 40mm
Industrial packaging No
Length 41mm
Manufacturer part # 3450505
Misc Attribute 3450505
No. of rows 1
Nominal current 30A
Nominal current - rounded value 30A
RoHS-compliant Yes
Weight 0.000
