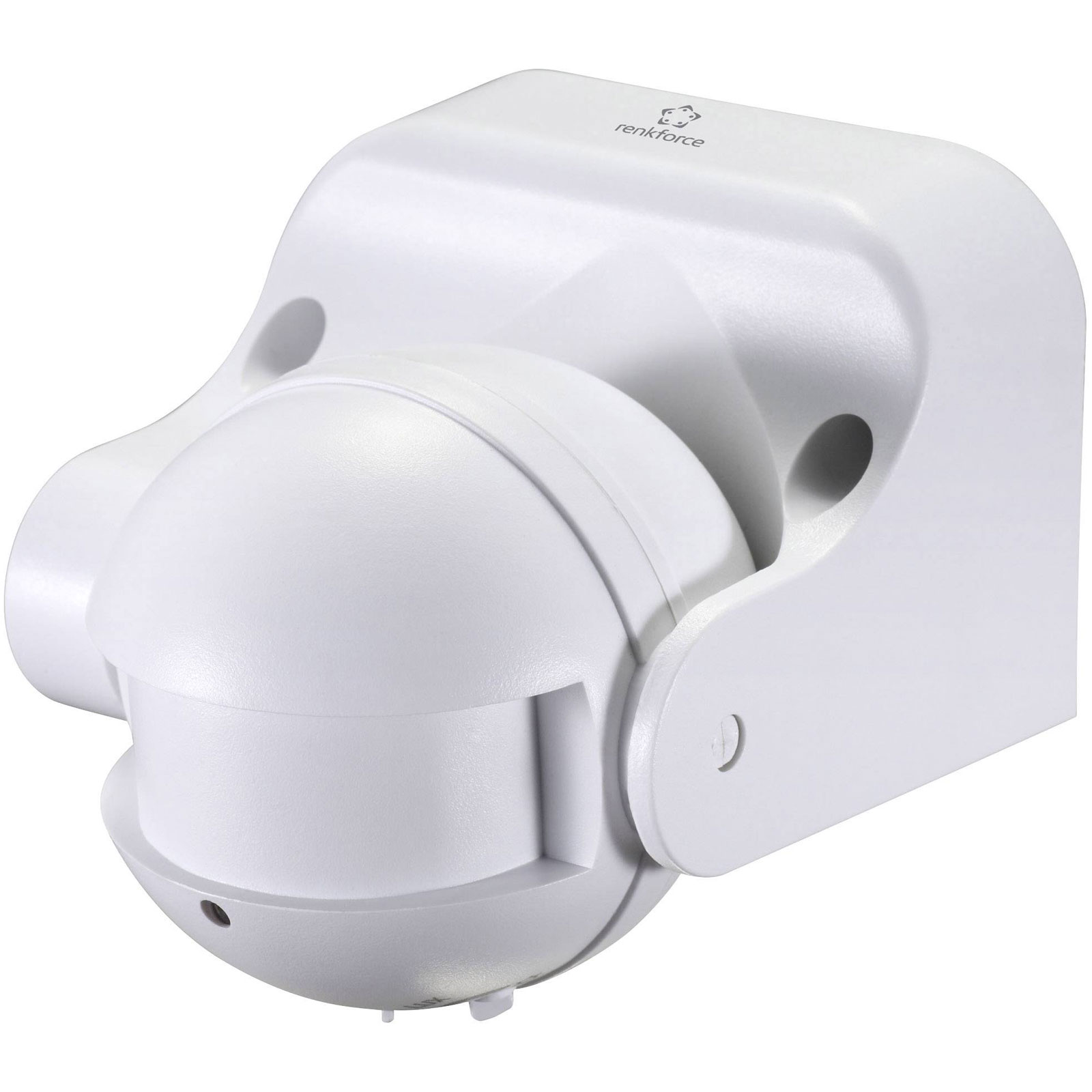

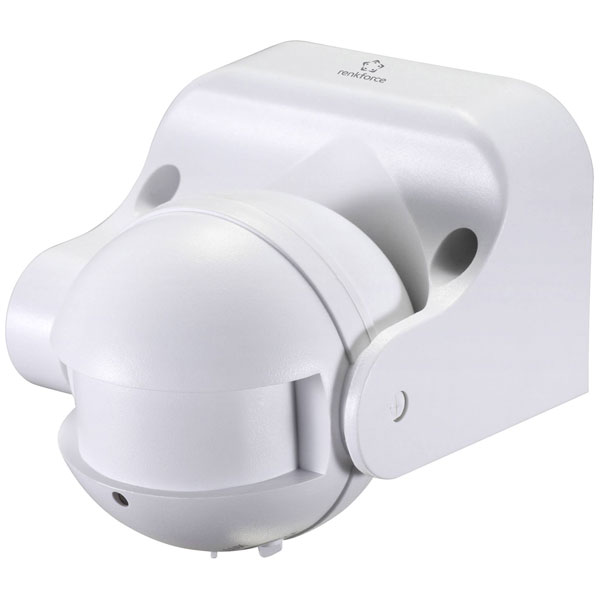

Renkforce 1362991 HF Motion Detector 180° Relay White IP44 Surface-Mount

The Renkforce 1362991 surface-mount HF motion detector detects movement with a 180-degree range and is ideal for wall installations. It features a structure suitable for surface mounting with relay functionality, rated IP44 for outdoor use. Typical applications include automatic lighting control in residential or commercial properties.

Type	HF motion detector
Contact Type	Relay
Detection Angle	180°
Dim	(L x W x H) 85 x 104 x 80 mm
Factory colour	White
Height	80mm
IP Rating	IP44
Length	85mm
Max. Range	15m
Operating Temperature	-20 to +40°C
Operating Voltage	230V
Standby current consumption	0.9W
Switching capacity (energy saving bulbs)	300W
Switching capacity (halogen bulbs)	1200W
Switching capacity (LED)	300W
Switching capacity (light bulbs)	1200W
Time settings	10 sek - 12min
Twilight settings	3 - 2000lx
Width	104mm
