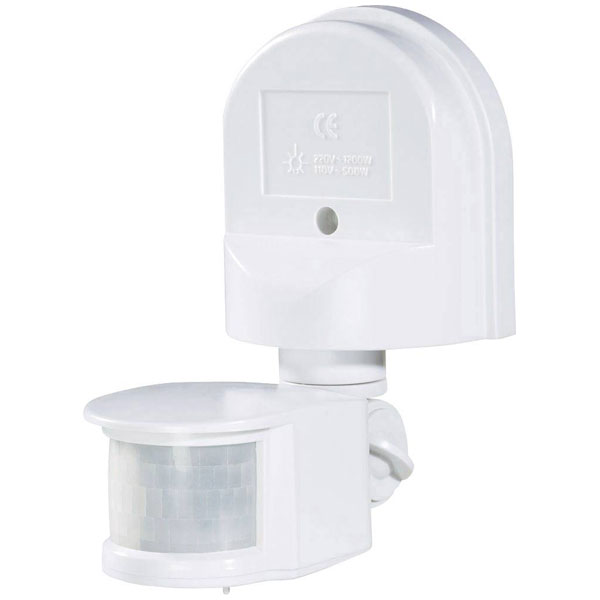

Renkforce 1296294 Wall PIR Motion Detector 180° White IP44 Adjustable Sensor

Manufactured by Renkforce, the 1296294 Wall PIR motion detector offers a 180° detection angle and is designed for wall mounting. It features a relay output and is rated IP44 for weather resistance, making it suitable for both indoor and sheltered outdoor applications. Typically used for automatic lighting control and security purposes, it efficiently detects motion using passive infrared technology.

Type	PIR motion detector
Contact Type	Relay
Detection Angle	180°
Dim	(L x W x H) 220 x 88 x 58 mm
Factory colour	White
Height	58mm
IP Rating	IP44
Length	220mm
Max. Range	12m
Mounting Type	Wall
Operating Temperature	-20 - +40°C
Operating Voltage	230V
Standby current consumption	0.45W
Switching capacity (energy saving bulbs)	300W
Switching capacity (light bulbs)	1200W
Time settings	10s - 7min
Twilight settings	5 - 2000lx
Used at	Outdoors
Width	88mm
