Recom REC7.5-2409DRW/H1/A/M 7.5W DC/DC Converter 24V In 9V Out

Name: Recom REC7.5-2409DRW/H1/A/M 7.5W DC/DC Converter 24V In 9V Out
Brand: Recom
Price: 391.95 GBP
Availability: BackOrder

Order Code:

49-9409

Copy to clipboard

( Write a review )

Brand: Recom Copy to clipboard MPN: REC7.5-2409DRW/H1/A/M Copy to clipboard

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
15+	£26.13

Get a quote for large quantities here

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 15

Standard factory lead time 14 monthsContact us for lead times

Available to back OrderPlease contact us for lead time

Product Details
Data Sheets
Quick Quote

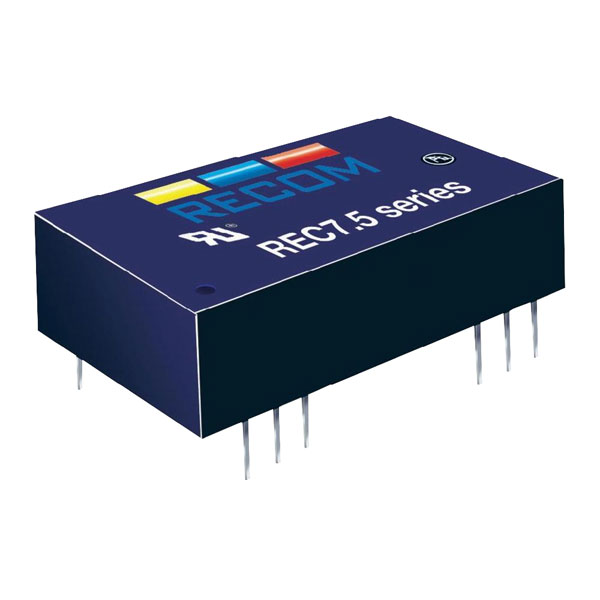

This REC7.5-2409DRW/H1/A/M DC to DC Converter from Recom offers a Dual Output in a DIP24 package with the 2kV isolation option. It is suitable for higher power industrial or medical applications.

The REC7.5-2409DRW/H1/A/M is supplied with a DIP24 shielded metal casing (= option /'M'), and industry standard pinout (= option '/A'), The converter can deliver 140% rated power for short periods of time to cope with applications with large capacitive loads or high start up currents.

Grid pitch: 2.54mm
Input voltage: 18 - 36V DC
Insulation voltage: 2000V DC
Output current: ±417mA
Output voltage: ± 9V DC
Specification: DIP 24/metal housing
Power: 7.5W
Specification: DIP24
Efficiency up to 81 to 84%
Operating Temperature from -40°C to +71°C
Dimensions: 32(L) x 20.3(W)
Type: DC to DC Converter REC 7.5 Dual Series
Manufacturer's part: REC7.5-2409DRW/H1/A/M

Mounting Style	DIP-24
Number of Outputs	2
Output Voltage Min	-9V
Output Voltage Max	9V
Output Current Min	-417mA
Output Current Max	417mA
Power Rating	7.5W
Supply Voltage Range	24V
Temperature Range	-40 to +71°C
