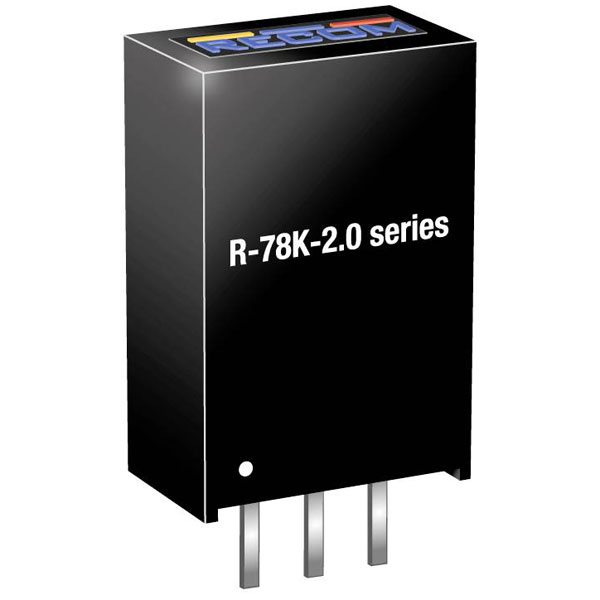

RECOM R-78K12-2.0 DC/DC converter 12 V 2 A 24 W Content

RECOM R-78K12-2.0 DC/DC converter, the ultimate choice for those seeking a compact and efficient power supply solution. With 12V output, 2A current capacity, and a remarkable 24W power handling, this converter ensures stable and reliable performance for your electronic devices. Its ultra-wide input voltage range from 6.5V to 34V and high efficiency of up to 96% minimize energy waste, while its rugged design and built-in protections against over-temperature, over-current, and short-circuit make it perfect for industrial and consumer applications alike

Type	Converter
Connection	THT
Dim	(L x W x H) 11.50 x 8.50 x 17.50 mm
Efficiency (max.)	96%
Height	17.50mm
Input voltage (max.)	36V DC
Length	11.50mm
Max. output current	2A
Min. input voltage	4.5V DC
Misc Attribute	R-78K12-2.0
Operating temperature (max.)	+90°C
Operating temperature (min.)	-40°C
Output current (max.) - rounded	2A
Output voltages	12V
Power	24W
RoHS-compliant	Yes
Width	8.50mm
