Rean RCX3F-Z-001-1 XLR Connector Socket 3 Pins AV Series 1pc

Name: Rean RCX3F-Z-001-1 XLR Connector Socket 3 Pins AV Series 1pc
Brand: Rean
Price: 3.07 GBP
Availability: InStock

Standard range

Order Code:

06-3874

Brand: Rean MPN: RCX3F-Z-001-1

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (8)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£3.07

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

7 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

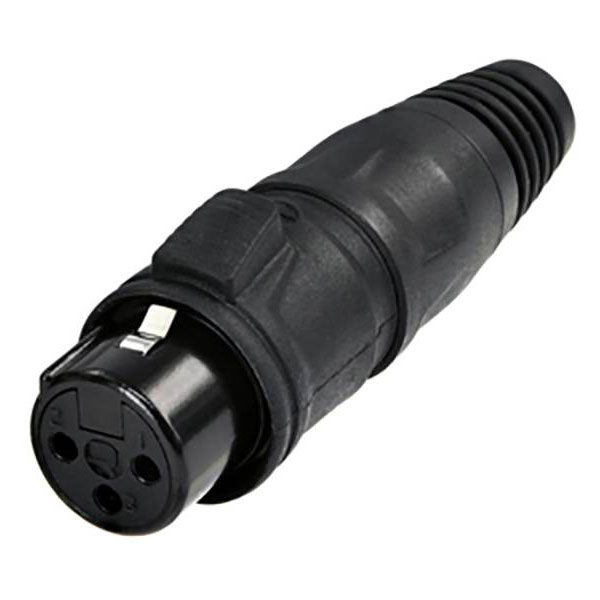

The Rean AV RCX3F-Z-001-1 is a straight XLR connector socket made for reliable audio connections. Featuring three pins, it is ideal for professional audio equipment. This piece is commonly used in sound systems, mixers, and microphones.

Connector type	Socket, straight
Cable Ø (max.)	8mm
Cable Ø range	5 - 8 mm
Cable Ø up to	5mm
Connection	Solder pins
Connector cross section	1.5mm²
Contact material	Bronze
IP rating	IP65
Manufacturer part #	RCX3F-Z-001-1
Material (details)	Contact coating: Tin
Mating cycles	1000
Misc Attribute	RCX3F-Z-001-1
Nominal current	16A
Nominal voltage	50V
Number of pins	3
Temperature Range	-20 °C to +70 °C.°C
Type	XLR connector
