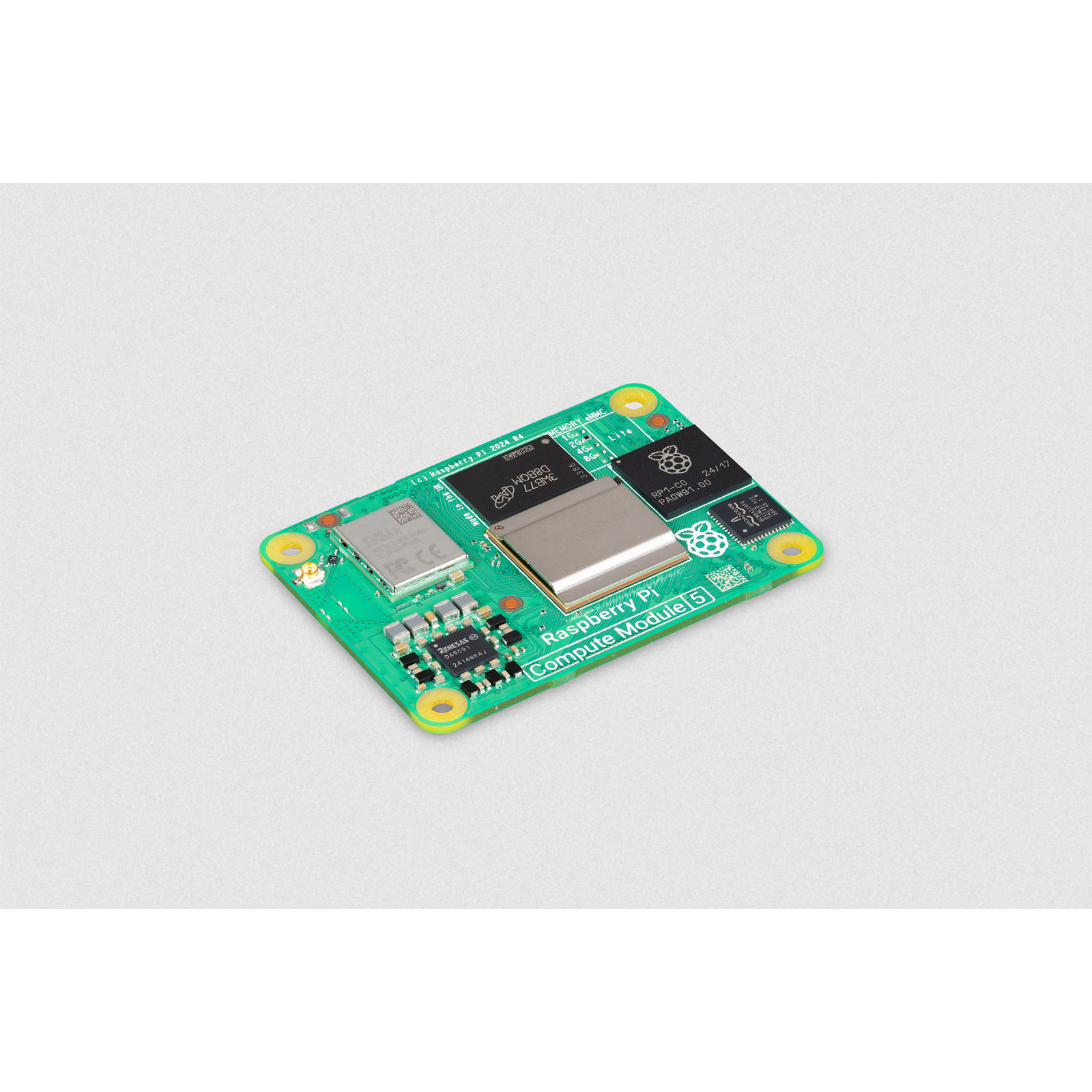

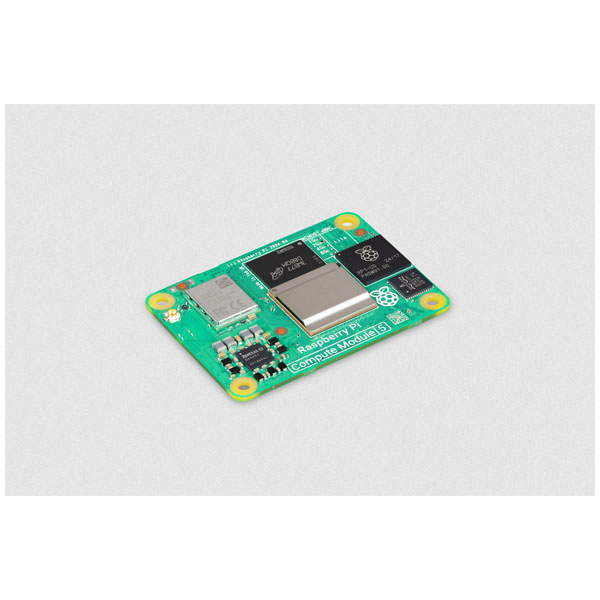

Raspberry Pi SC1602 CM5108064 (Compute Module CM5, 8GB RAM/64GB eMMC, Wireless)

The Raspberry Pi SC1602 Compute Module 5 (CM5108064) is a System on Module (SoM) containing processor, memory, eMMC Flash, and supporting power circuitry. The Compute Module 5 delivers the processing power of the Raspberry Pi 5 in a compact, cost effective form factor that is ideal for embedded applications.

Powered by a Broadcom BCM2712 quad-core Cortex-A76 processor with clock speeds of up to 2.4GHz, with dual 4Kp60 HDMI output, Gigabit Ethernet, Wi-Fi® and Bluetooth connectivity the Compute Module 5 offers exceptional performance for a wide range of applications.

The Compute Module 5 allows you to leverage the Raspberry Pi hardware and software stack in your own custom systems and form factors. In addition, the Compute Module 5 module has extra IO interfaces over and above what is available on the Raspberry Pi boards, expanding the available design options.

The electrical interface is via two 100-pin, high density connectors. The Compute Module 5 includes changes in pinout to support the addition of two USB 3.0 ports. See the Technical Datasheet for details.

• Form factor: 55 mm × 40 mm
• Processor: Broadcom BCM2712 quad-core Cortex-A76 (ARMv8) 64-bit SoC @ 2.4GHz
• Memory: 8GB LPDDR4-4267 SDRAM with ECC
• Storage: 64GB eMMC Flash memory
• Connectivity: Wireless 2.4GHz and 5.0GHz IEEE 802.11 b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
• Gigabit Ethernet PHY supporting IEEE1588
• 1 x PCIe 1-lane Host, Gen 2 (5Gbps)
• 1 x USB 2.0 port (high speed)
• 2 x USB 3.0 ports (supporting simultaneous 5Gbps operation)
• Up to 30 GPIO
• SD card interface for SDIO 2.0 card card or external eMMC (for use with Compute Module 5 variants without onboard eMMC)
• Video: 2 x HDMI ports (up to 4Kp60/port supported)
• 2 x 4-lane MIPI ports - support both DSI (display) and CSI (camera)
• Input power: 5V DC
• Operating temperature: -20 to +85°C
