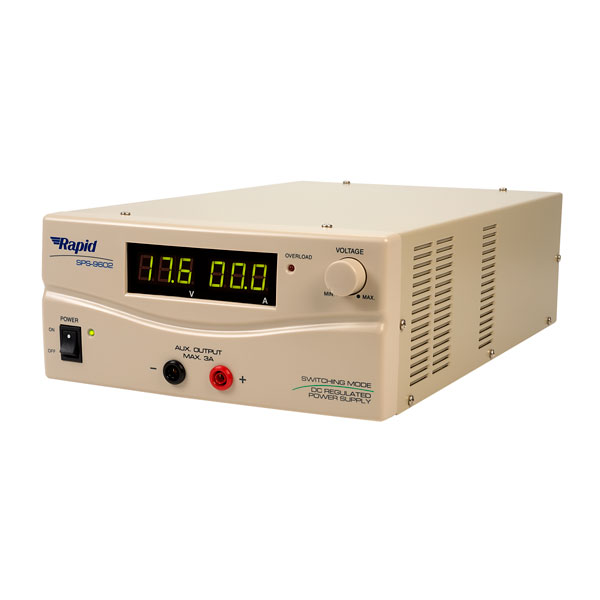

Rapid SPS-9602-209G Switch Mode Power Supply (High Current) Variable 1-30V 30A

Rapid
Order Code:

85-1832

Brand: Rapid MPN: SPS-9602-209G

Discontinued


Buy switch mode power supply (high current) variable 1-30V 30A from Rapid - a high power (900W) switch-mode DC regulated power supply featuring a 1-30V variable output, designed with a highly efficient active power factor corrector.

The constant current limiting protection allows the output current to remain stable, but the output voltage decreases to a safe operating level. Remote sensing is included to compensate for output line losses, plus the output voltage level can be externally controlled via a remote terminal.


  • Includes front terminal with 3A limiting
  • Main o/p, remote sensing, remote control terminals are mounted on the back of unit
  • Adjustable o/p 1-30V DC
  • Lightweight and small footprint - 220 x 110 x 360mm, 5.8kg
  • Overload, over-temperature, short circuit protection
  • Constant current mode with LED indicator
  • Variable speed thermally controlled fan
  • Large LED readouts

For a suitable in-line locking DIN socket see Rapid part 50-3220.

Not recommended for use as a battery charger.

Output Voltage 30V
Number of Outputs 1
Power Rating 900W
Input Voltage 230V
Output Current Max. 30A
Output Current Min. 0A
Output Voltage Min. 1V

Questions

*Question functionality currently disabled
Tuesday, July 29, 2014 | Question by: Rapid Customer | Product code: 85-1832
Q. Regarding the 'Constant Current mode'. Can the Current level be adjusted?
A. Hi Dave. Thank you for your question. The current cannot be altered, its 3A for the front terminals and 30A for the rear - only voltage is variable.
Wednesday, September 25, 2013 | Question by: Rapid Customer | Product code: 85-1832
Q. Is the remote terminal supplied with the unit?
A. Hi Steve. Thank you for your question. This unit has a remote sensing terminal on the rear, please see the data sheet for more information.
