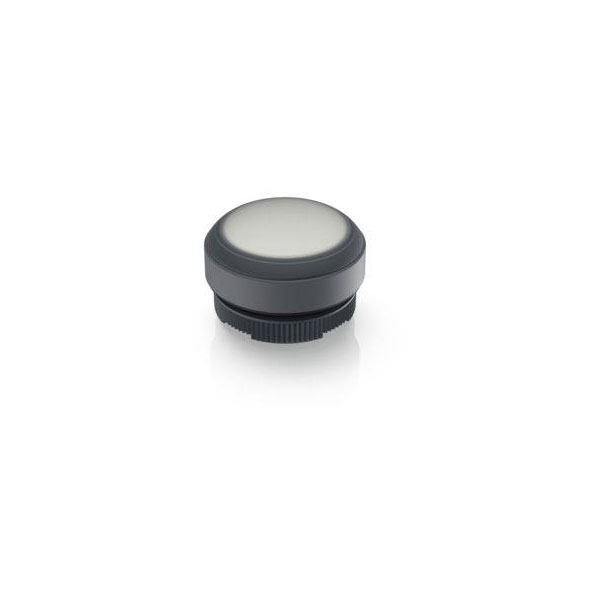

RAFI 1.30.270.005/2201 E-BOX IO-LINK Illuminated Push Button 29.8x29.8mm

The RAFI 1.30.270.005/2201 E-BOX IO-LINK Illuminated push button is a momentary switch measuring 29.8 x 29.8 x 20.7 mm. Its illuminated feature enhances visibility, making it suitable for control panels and user interfaces. Typically, it finds applications in industrial automation systems where reliable user input is crucial.

Type	Illuminated push button
Contact Configuration	None
Switch Function	2 makers
Current Rating	N/A
Mounting	Panel
Illumination	White
Panel Cutout Dimensions	22.3
Connection	M12 plug
Dim	(L x W x H) 29.8 x 29.8 x 20.7 mm
Height	20.7mm
Length	29.8mm
Lighting Type	incl. lighting
Misc Attribute	E-BOX IO-LINK
Recess depth	9.2mm
Recess Diameter	22.3mm
Shape	Round
Switch/button features	+ protective cover
Width	29.8mm
