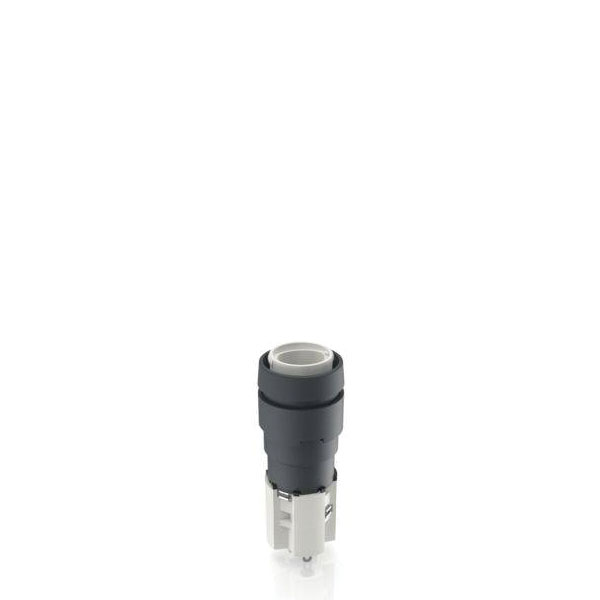

RAFI 1.15.108.251/0000 LUMOTAST Illuminated Push Button 230V 4A IP40

The RAFI LUMOTAST 75 is an illuminated push button switch designed for 230 V and 4 A operation. Measuring 18 x 18 x 49 mm, it offers momentary functionality and IP40 protection. This push button is commonly used in control panels and machinery interfaces.

Type	Illuminated push button
Contact Configuration	SPNO
Switch Function	Momentary
Current Rating	4A
Mounting	Panel
Illumination	Illuminated
Actuating Force	9N
Connection	Soldering
Contact Material	Silver
Dim	(L x W x H) 18 x 18 x 49 mm
Height	49mm
IP Rating	IP40
Length	18mm
Lighting Type	incl. lighting
Misc Attribute 1	LUMOTAST 75
Misc Attribute 2	Flat bezel
Recess depth	41.5mm
Recess Diameter	16.2mm
Shape	Square
Switching Voltage	230V
Width	18mm
