RAFI 1.10.011.001/0221 RAMO 22 T Pushbutton 35V DC 0.1A Momentary

MPN: 1.10.011.001/0221
Brand: RAFI
EAN-13: 2050009898731
Order Code: 06-3556
Country of Origin: Hungary

Free UK shipping available

Quickly find another product in this range by Casing/button Colour:

Blue Green Red White Yellow

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£47.32

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 2 in stock

Product Details
Product Range
Data Sheets

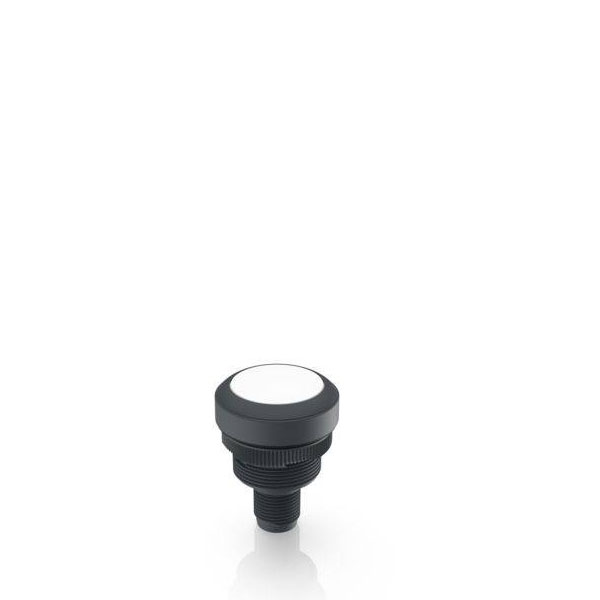

The RAFI RAMO 22 T Pushbutton, part number 1.10.011.001/0221, is a momentary switch designed for DC applications up to 35 volts and 0.1 amperes. It has dimensions of 40 x 29.8 x 29.8 mm and is suitable for control panels and equipment interfaces. Typical applications include industrial machinery and electronic devices where a reliable momentary contact is required.

Type	Pushbutton
Contact Configuration	None
Switch Function	1 maker
Current Rating	0.1A
Mounting	Panel
Voltage Rating	30V
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3
Actuating Force	5N
Casing/button Colour	White
Connection	M12 plug
Contact Material	Gold
Dim	(L x W x H) 40 x 29.8 x 29.8 mm
Height	29.8mm
Length	40mm
Lighting Type	incl. lighting
Max. switching capacity	1W
Misc Attribute	RAMO 22 T
Recess depth	30.2mm
Recess Diameter	22.3mm
Shape	Round
Switching Voltage	35V DC
Width	29.8mm
