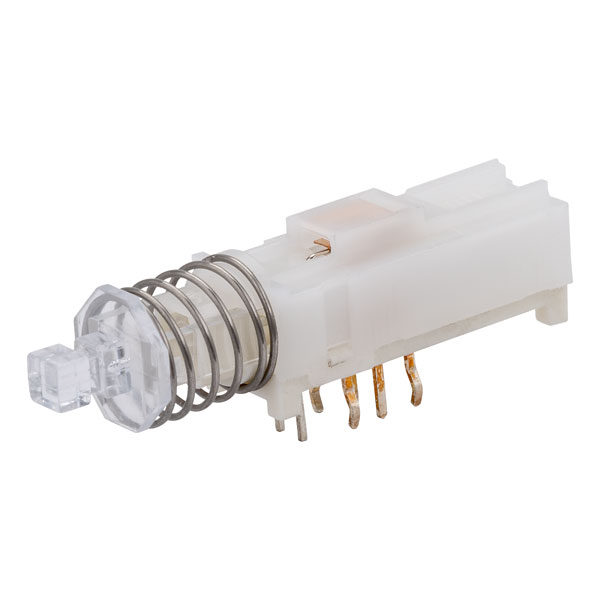

R-TECH 780391 Latching DPDT PCB Switch with High Intensity Green LED

R-TECH
MPN
780391
Brand
R-TECH
EAN-13
5053556003211
Order Code
78-0391
Country of Origin
China
View Full Product Range (3)
Qty Unit Price (Ex VAT)
5+ £1.83
50+ £1.53
100+ £1.31
500+ £1.18
1000+ £1.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
Despatched same day - 436 in stockAdditional quantity lead time 6 months

An R-TECH double pole push button latching switch, with integral high intensity green LED for right angled PCB mounting.

Applications include pro audio and video processing equipment and broadcast and test equipment amplification.

The LED operation is independent of the switching function allowing designers to freely assign the LED illumination for a wide variety of status options.


  • Type: Push button switch for right angled PCB mounting
  • Illumination colour: Green
  • Switch action: Latched
  • Contact configuration: DPDT
  • Maximum contact voltage: 30V DC
  • Maximum rated current: 300mA
  • Contact resistance: 20 mΩ max
  • Terminal type: Solder pins
  • Shaft Dimension: 3.3 x 3.3 mm
Type PCB switch
Contact Configuration On / on
Switch Function On-On
Current Rating 300mA
Mounting PCB
Illumination Green
Panel Cutout Dimensions N/A
Illumination Type LED
Shaft Dimensions 3.3 x 3.3mm
