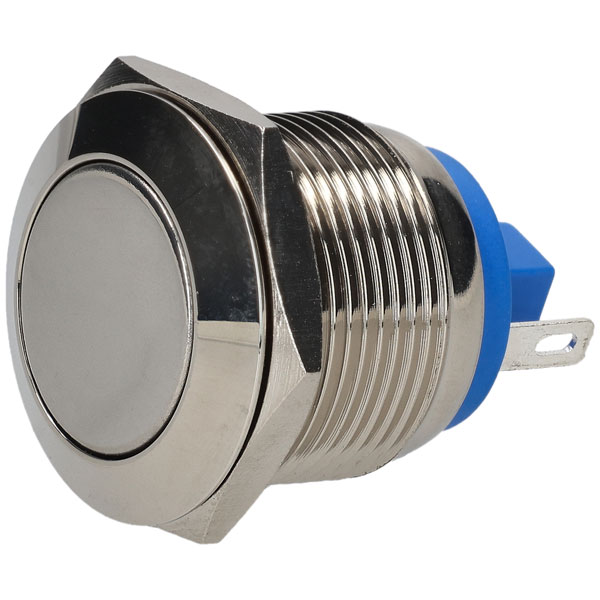

R-TECH 524586 19mm Vandal Resistant Switch 36VDC 2A Flat Nickel Solder Pin

MPN: 524586
Brand: R-TECH
EAN-13: 5053556005987
Order Code: 52-4586
Country of Origin: China

RoHS Compliant
Free UK shipping available

View Full Product Range (6)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£3.73
10+	£3.30
25+	£3.06
50+	£2.96
100+	£2.86
250+	£2.77

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 105 in stockAdditional quantity lead time 4 months

Product Details
Product Range
Data Sheets
Quick Quote

An IP65 rated nickel-plated vandal resistant push-button switch with a flat button and solder pin terminals.

Momentary operation
SPST, 1x Off/(On)
Switching current: 2A
Switching voltage: 36V DC
Body material: Brass
Nickel-plated finish
Screw terminals
Actuating force: 5.5N
Contact material: Silver alloy
Contact resistance: ≤50mΩ
Dielectric strength: 2000V AC
Electrical life: 200,000 cycles
Front panel thickness: 1 to 8mm
Illumination: No
Installation diameter: 19mm
Insulation resistance: ≥1000MΩ
Mechanical life: 1,000,000 cycles
Protection type: IP65
Temperature range: -20 to +55°C

Type	Push-button
Contact Configuration	Off / (on)
Switch Function	Off-(On)
Current Rating	2A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	19mm
Illumination Type	None
Maximum Temperature	+55°C
Min. temperature	-20°C
