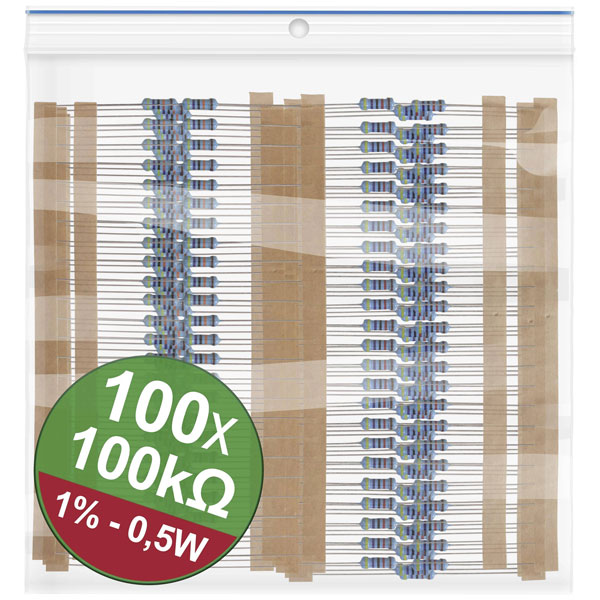

Quadrios 22P100 Metal film resistor set 100 kΩ Axial lead 0.5 W 1%

Quadrios presents the 22P100 metal film resistor set, featuring resistors with an impedance of 100 kO and a precise tolerance of 1%. These axial lead resistors are rated at 0.5 W, ensuring reliable performance in a variety of circuit applications with minimal signal noise due to their metal film construction. Utilised often in precision instrumentation, audio processing equipment, and communication devices, these resistors provide stability and accuracy that are critical for maintaining circuit integrity. The Quadrios 22P100 set offers engineers a dependable component choice for both prototyping and permanent installations where consistent resistance values are paramount.

Type	Metal film Resistor (set)
Resistance	100kΩ
Tolerance	1%
Voltage	350V
Power Rating	0.5W
PPM	100ppm/°C
Content	1
Diameter	3.5mm
Dimensions	(Ø x L) 3.5 mm x 9 mm
Length	9mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
