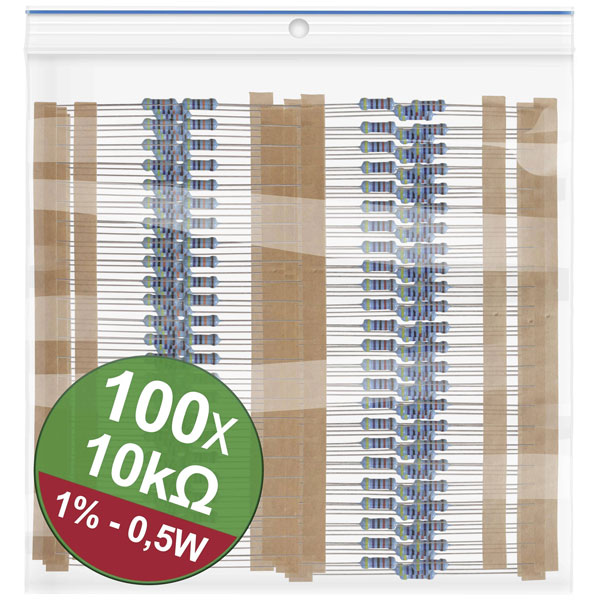

Quadrios 22P096 Metal film resistor set 10 kΩ Axial lead 0.5 W 1% 1 Set

Quadrios' 22P096 Metal Film Resistor Set encompasses precision-engineered 10 kO resistors, featuring an axial lead configuration with a power rating of 0.5 W and a tolerance of 1%. These resistors are designed to deliver stable performance and low noise, making them essential components in electronic circuits where accurate impedance is crucial. Commonly utilised in applications such as telecommunications equipment, audio devices, and precision measurement systems, the metal film construction provides enhanced thermal stability and long-term reliability over carbon film alternatives. With their consistent performance characteristics, these resistors are ideal for use in environments demanding high accuracy and stability.

Type	Metal film Resistor (set)
Resistance	10kΩ
Tolerance	1%
Voltage	350V
Power Rating	0.5W
PPM	100ppm/°C
Content	1
Diameter	3.5mm
Dimensions	(Ø x L) 3.5 mm x 9 mm
Length	9mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-30°C
Minimum Operating Temperature	-30°C
