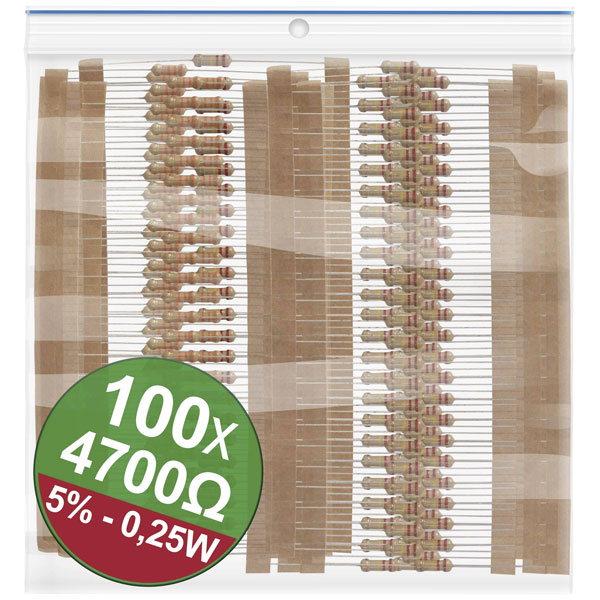

Quadrios 22P072 Carbon film resistor set 4.7 kΩ Axial lead 0.25 W 5%

Quadrios 22P072 carbon film resistor set is a high-quality collection of carbon film resistors, specifically rated at 4.7 kO with a power handling capacity of 0.25 watts and a tolerance of 5%. This set is characterised by its axial lead configuration, making it suitable for through-hole mounting on printed circuit boards. Carbon film resistors are known for their low noise and stability, making them ideal for applications requiring precise impedance values within electronic circuits. Common usages include their integration into audio equipment, instrumentation, and general-purpose electronic devices where reliable performance is essential. These resistors are well-suited for engineers looking for cost-effective components with a balance of accuracy and reliability.

Type	Axial lead
Resistance	4.7kΩ
Tolerance	5%
Voltage	300V
Power Rating	0.25W
Content	1
Diameter	2.3mm
Dimensions	(Ø x L) 2.3 mm x 6 mm
Length	6mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-50°C
Minimum Operating Temperature	-50°C
Product Type	Carbon film Resistor (set)
Temperature Coefficient	700ppm/°C
