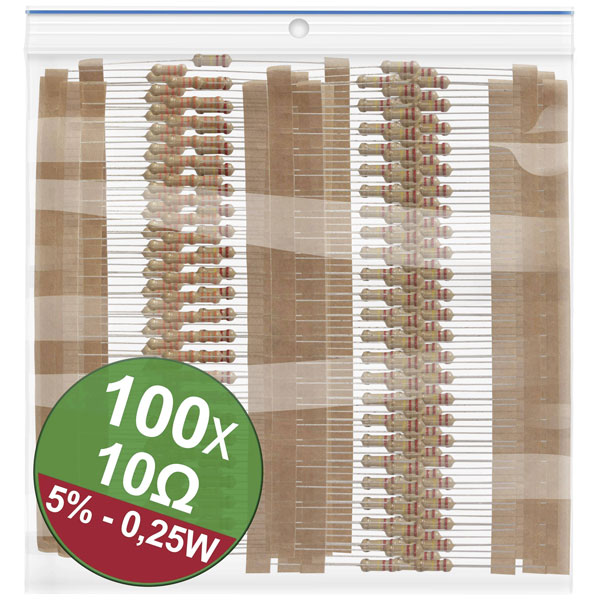

Quadrios 22P062 Carbon film resistor set 10 Ω Axial lead 0.25 W 5%

Quadrios 22P062 represents a set of carbon film resistors with an axial lead configuration, offering a resistance value of 10 ohms. These resistors, rated for a power capacity of 0.25 watts and a tolerance of ±5%, are designed to provide consistent and reliable performance across a range of electronic circuits. Carbon film resistors are a common and cost-effective solution for reducing current flow, adjusting signal levels, or dividing voltages in applications such as consumer electronics and various embedded systems. The utilisation of carbon film technology ensures stability and precision in impedance control, making these components essential for designing and debugging electronic devices.

Type	Axial lead
Resistance	10Ω
Tolerance	5%
Voltage	300V
Power Rating	0.25W
Content	1
Diameter	2.3mm
Dimensions	(Ø x L) 2.3 mm x 6 mm
Length	6mm
Max. temperature	150°C
Maximum Temperature	150°C
Min. temperature	-50°C
Minimum Operating Temperature	-50°C
Product Type	Carbon film Resistor (set)
Temperature Coefficient	350ppm/°C
