Quadrios 22CW002 Stranded Wire Assorted 10 Colours 0.25 mm² Copper

Name: Quadrios 22CW002 Stranded Wire Assorted 10 Colours 0.25 mm² Copper
Brand: Quadrios
Price: 18.34 GBP
Availability: InStock

Standard range

Order Code:

06-3333

Brand: Quadrios MPN: 22CW002

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (16)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£18.34

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

36 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

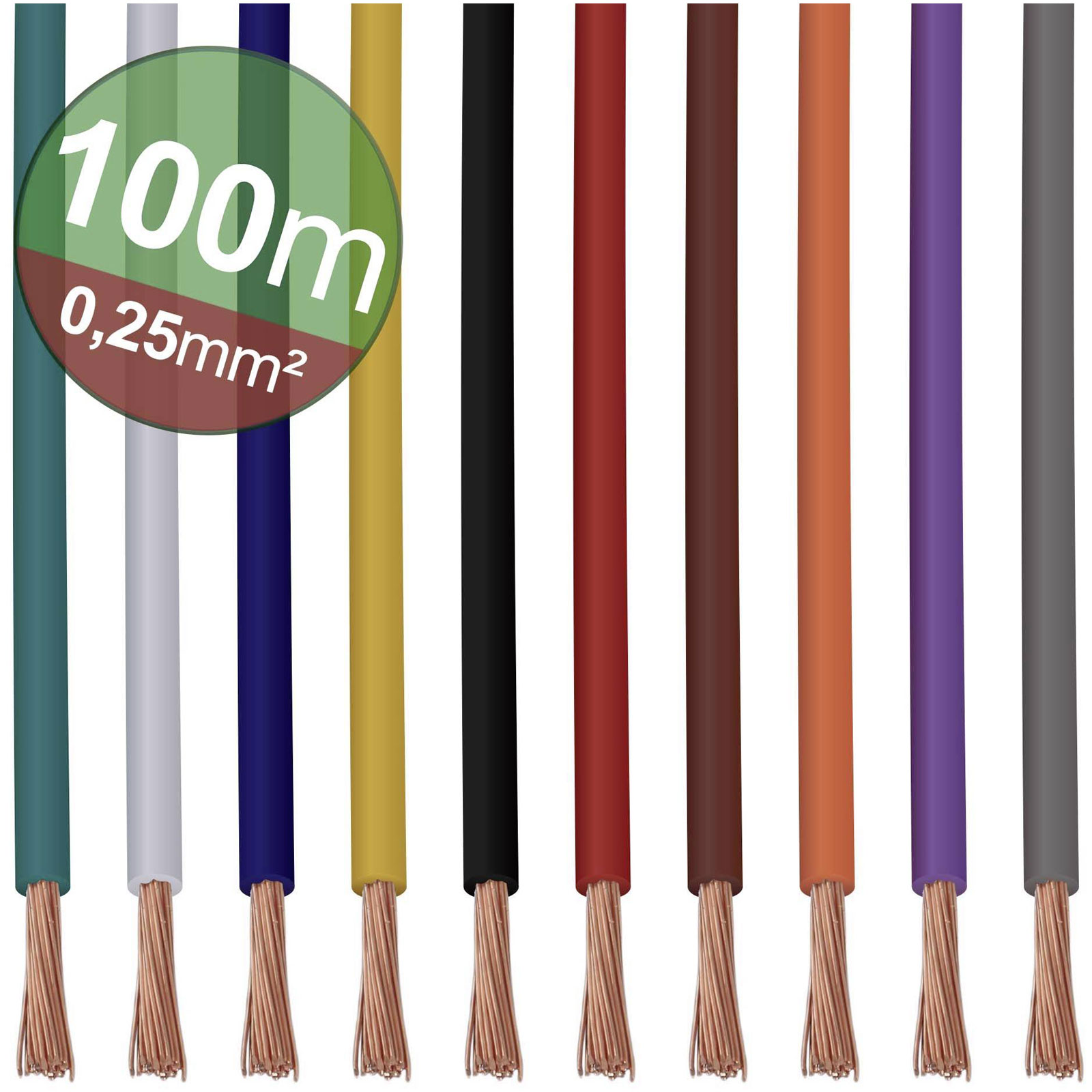

The Quadrios 22CW002 is an assorted set of stranded wires, each with a cross-section of 1 x 0.25 mm², available in various colours such as white, blue, and brown. These wires are ideal for internal wiring and switchboard applications due to their versatile colour coding and flexibility. Quadrios manufactures these wires, ensuring they are suitable for a range of electrical installations and repairs.

Insulation material	PVC
Core layout	8 x 0.2 mm
Cross section	1 x 0.25 mm²
Cross section (each core)	0.25mm²
Manufacturer part #	22CW002
Material (details)	Copper
Max. temperature range (flexible installation)	+70°C
Min. temperature range (flexible installation)	-30°C
Misc Attribute	22CW002
No. of leads	1
Nominal voltage U0	230V
Outside Ø	1.2mm
RoHS-compliant	Yes
Type	Stranded wire (assorted)
