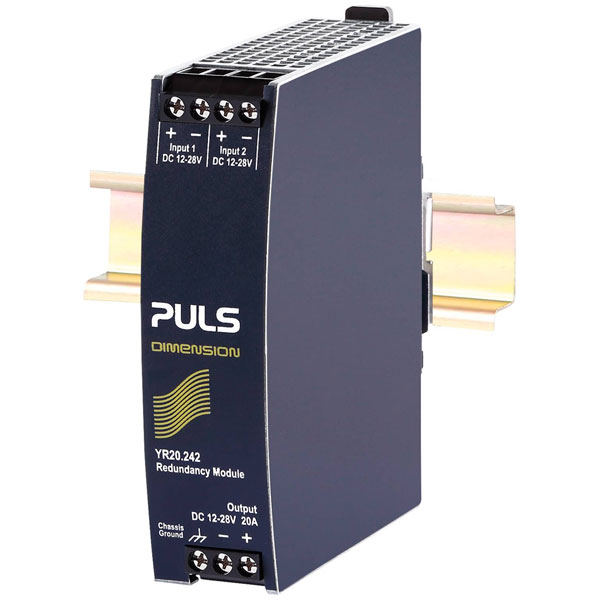

PULS YR20.242 DIMENSION Redundancy Module 26A 1 Output

The PULS YR20.242 redundancy module is a robust industrial power supply unit designed for rail mount applications. Manufactured by PULS, it offers a single output with a capacity of 26 A, ensuring reliable power in critical systems. It is commonly used in industrial environments where uninterrupted power is essential, such as in automation and control systems.

Type	Redundancy module
No. of Poles	1
Connection	Screw terminal
Dim	(L x W x H) 117 x 32 x 124 mm
Height	124mm
Length	117mm
Max. output current	26A
Maximum Input Volage	36.4V DC
Maximum Temperature	+70°C
Min. temperature	-40°C
Minimum Input Volage	8.4V DC
Number of Outputs	1
Output current (max.) - rounded	26A
Weight	250g
Width	32mm
