PULS UB10.245 DIMENSION Overvoltage/Overcurrent Protector 240W 24V 10A

PULS
Standard range
Order Code:

10-3249

Brand: PULS MPN: UB10.245 EAN-13: 0875404001362
  • RoHS Compliant
  • Country of Origin: Czech Republic
  • Free UK shipping available
Qty Unit Price (Ex VAT)
1+ £299.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

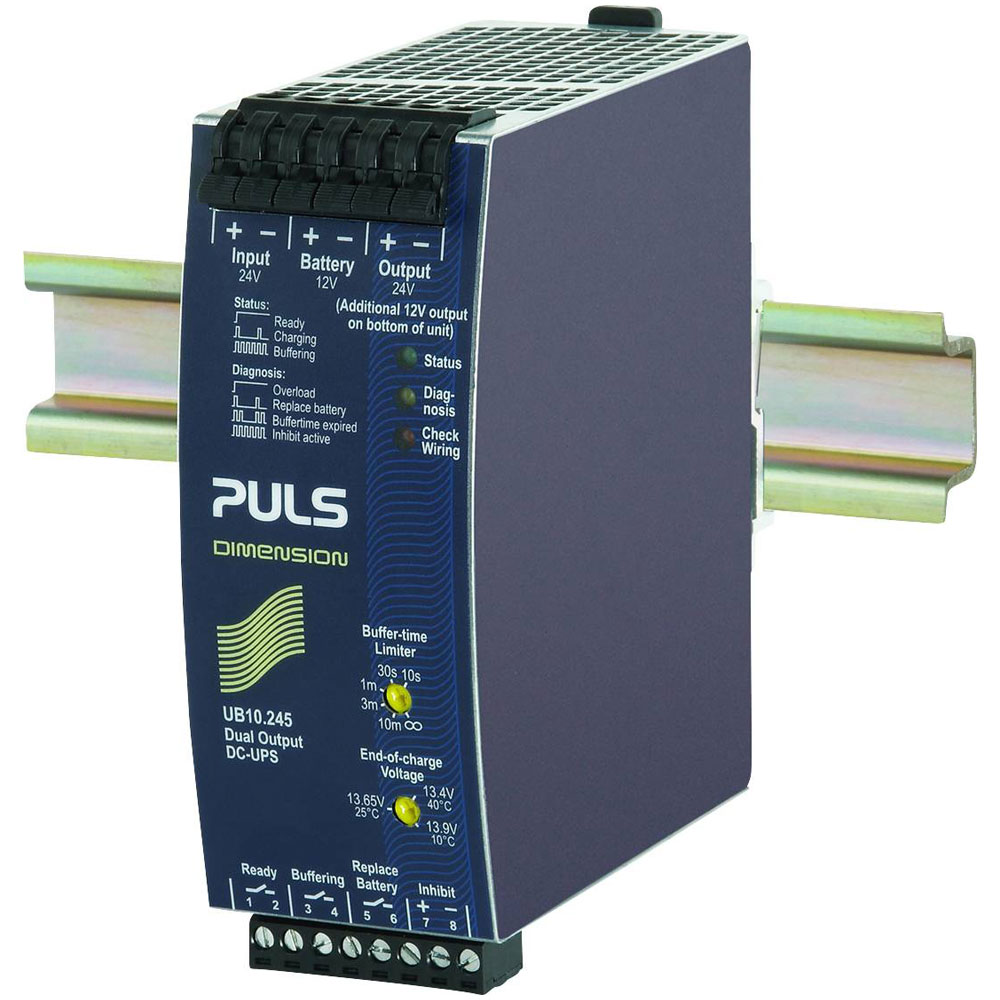

The PULS UB10.245 is an industrial power supply unit featuring overvoltage and overcurrent protection for optimal safety. It operates at 24 V and 10 A, delivering up to 240 W with one output. This DIN rail mount power supply is ideal for secure and stable power distribution in industrial applications.
Type Overvoltage/overcurrent protector
Connection Spring-loaded terminal
Dim (L x W x H) 117 x 49 x 124 mm
Height 124mm
Input voltage DC 24V
Length 117mm
Manufacturer part # UB10.245
Max. operating temperature (derating) +60°C
Max. output current 10A
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute UB10.245
MTBF 788.000h
No. of outputs 1
Nominal input voltage 24 V/DC
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 10A
Output type (power supply units) Fixed voltage
Output voltage (nominal) 24V
Power 240W
Weight 350g
Width 49mm
