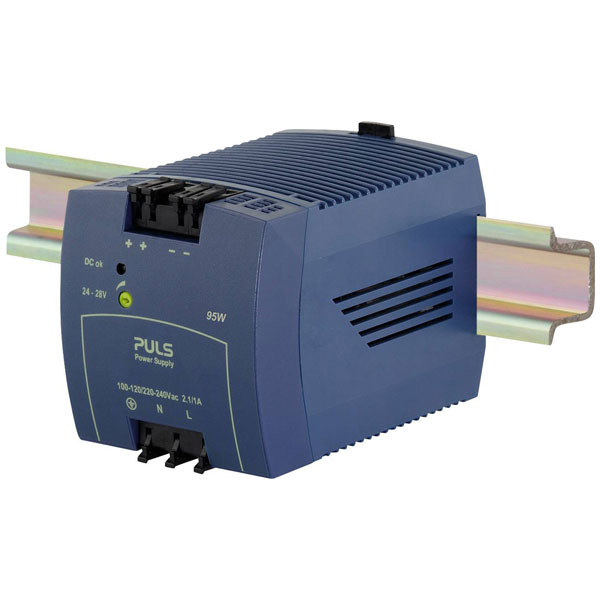

PULS ML95.100 Mini Line PSU 24V 3.95A 95W DIN Rail Mount Compact Design

PULS
Order Code:

10-3217

Brand: PULS MPN: ML95.100 EAN-13: 0875404000136
Qty Unit Price (Ex VAT)
1+ £146.66
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
6 in stock, despatched in 4 working days

The PULS ML95.100 is a rail-mounted PSU with a 24 V output at 3.95 A, offering 95 W of power from a single output. Manufactured by PULS, this industrial power supply unit is designed for DIN rail mounting, making it ideal for compact and efficient power management in automation and control systems. Typical applications include powering components in industrial environments where reliable and stable power is crucial.
Type Rail mounted PSU (DIN)
Connection Spring-loaded terminal
Dim (L x W x H) 103 x 73 x 75 mm
Efficiency 90.0%
Height 75mm
Input Voltage AC 100-120/220-240V (-15%/+10%)
DC 290V (-25%/+30%)
Input voltage (max.) 264V
Length 103mm
Max. operating temperature (derating) +60°C
Max. output current 3.95A
Max. temperature +70°C
Min. input voltage 85V
Min. temperature -10°C
MTBF 500.000h
Nominal Input Voltage 100 - 240 V/AC
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -10°C
Output current (max.) - rounded 3.95A
Output voltage (max.) 28V
Output voltage (min.) 24V
Output voltage (nominal) 24V
Phases 1
Power 95W
Width 73mm
