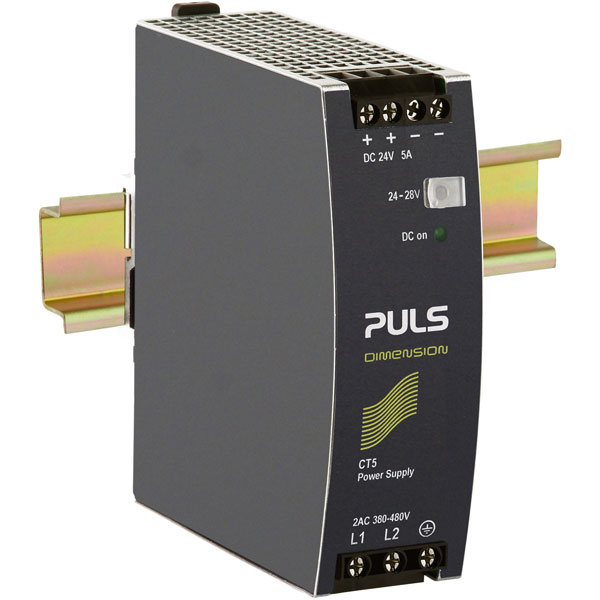

PULS CT5.241 Dimension DIN Rail Power Supply 24V DC 5A 120W 2-Phase

This DIN rail power supply from PULS is cost-efficient with no compromises in quality, reliability, size or power reserves.
Features include: two-phase input , AC/DC wide input range, 20% power reserve (power boost), adjustable output voltage, active switching current limiting, full output of -25 to +60 °C and large screw terminals.

• Input voltage range: 323 - 552V AC
• 2 phase
• Output: 24V DC 5A 120W
• Termination type: Screw terminal
• Dimensions 40 x 124 x 117mm
• Manufacturer's part CT5.241

For more information on this PULS power supply, please see its datasheet.
DIN rail power supply

Type	Rail mounted PSU (DIN)
Number of Outputs	2
Power Rating	120W
1st secondary output voltage	552V
2nd secondary output voltage	552V
3rd secondary output voltage	552V
Input Voltage	323 - 552 CA
Input Voltage Range	323 - 552 ACV
Max. output current 1	5A
Max. output current 2	5A
Max. output current 3	5A
Maximum Temperature	+70°C
Nominal value output voltage 1	24V
Output Current	5
Output voltage stabilized	552V
Rated supply voltage AC 50 Hz	552V
Rated supply voltage AC 60 Hz	552V
Rated supply voltage DC	552V
Secondary voltage adjustable	552V
Voltage type (supply voltage)	552V
