PTR Hartmann 54791120421D Spring-loaded Terminal 12 Pins 0.75 mm² Basalt Grey

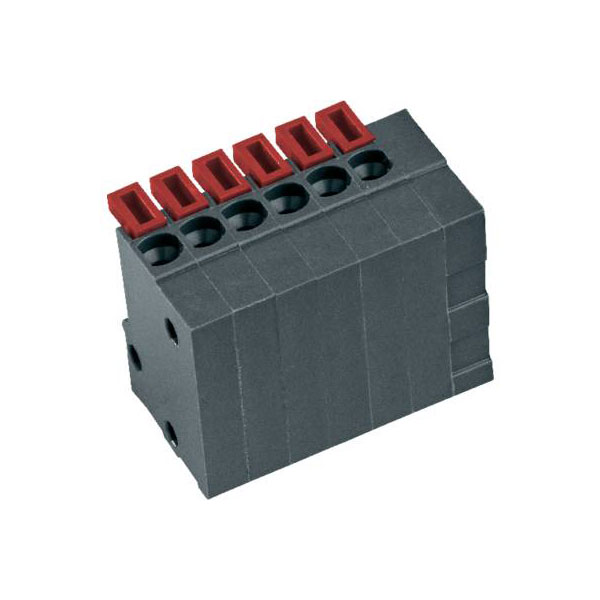

Image Representative of Range

PTR Hartmann 54791120421D Spring-loaded Terminal 12 Pins 0.75 mm² Basalt Grey

PTR
Order Code:

06-2920

Brand: PTR MPN: 54791120421D EAN-13: 2050001585240
Qty Unit Price (Ex VAT)
3+ £1.83
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
80 in stock, despatched in 4 working days

The PTR Hartmann 54791120421D is a spring-loaded terminal with a connection capacity of 0.75 mm² and features 12 pins, available in basalt grey. Typically used in printed circuit boards, this type of screw terminal block facilitates secure and reliable connections. Its durable design makes it suitable for various electronic and electrical applications.
No. of Ways 12
No. of Levels 1
Voltage Rating 150V
Current Rating 6A
AWG (min.) 26
AWG max. 18
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Factory colour Basalt grey
Height 17.10mm
Length 12.60mm
Min. stripping length 10mm
Misc Attribute AKZ4791/12KD-2.54-V
Pins per row 12
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Width 33.02mm
Wire protection Yes
