PTR Hartmann 54791100421D Spring-loaded Terminal 10 Pin 0.75 mm² Basalt Grey

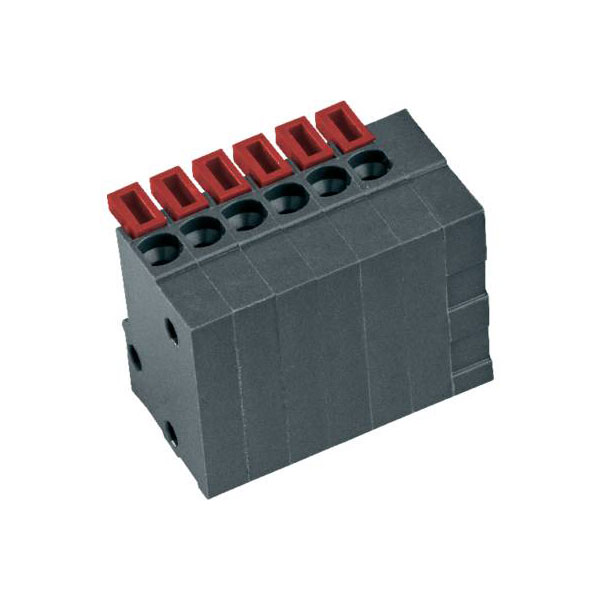

Image Representative of Range

PTR Hartmann 54791100421D Spring-loaded Terminal 10 Pin 0.75 mm² Basalt Grey

PTR
Order Code:

06-2918

Brand: PTR MPN: 54791100421D EAN-13: 2050001585233
Qty Unit Price (Ex VAT)
3+ £1.56
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 6 weeks

The PTR Hartmann 54791100421D is a spring-loaded terminal designed for 0.75 mm² connections and features 10 pins in a basalt grey finish. It is typically used in printed circuit board applications, providing reliable connectivity with its screw terminal block design. This component is ideal for various electronic and electrical projects requiring secure and efficient connections.
No. of Ways 10
No. of Levels 1
Voltage Rating 150V
Current Rating 6A
AWG (min.) 26
AWG max. 18
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Factory colour Basalt grey
Height 17.10mm
Length 12.60mm
Min. stripping length 10mm
Misc Attribute AKZ4791/10KD-2.54-V
Pins per row 10
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Width 27.94mm
Wire protection Yes
