PTR Hartmann 54791080421D Spring-loaded Terminal 0.75mm² 8-Pin Basalt Grey

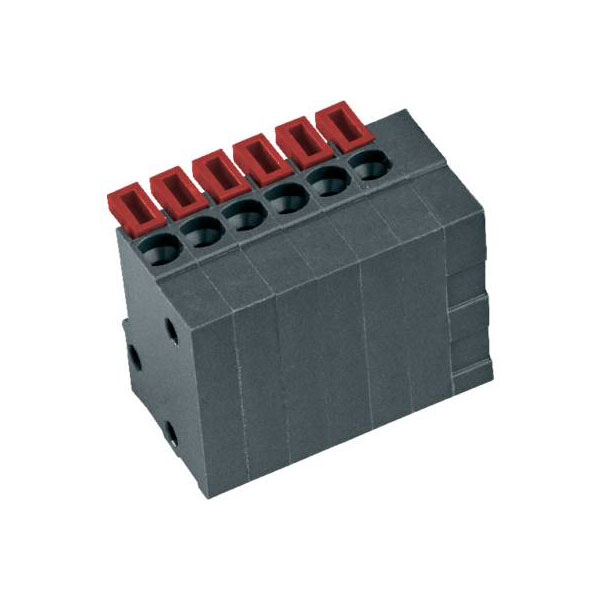

Image Representative of Range

PTR Hartmann 54791080421D Spring-loaded Terminal 0.75mm² 8-Pin Basalt Grey

PTR
Standard range
Order Code:

06-2916

Brand: PTR MPN: 54791080421D
Qty Unit Price (Ex VAT)
1+ £1.24
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
54 in stock, despatched in 4 working days

The PTR Hartmann 54791080421D is a spring-loaded terminal with a capacity of 0.75 mm² and features eight pins, finished in basalt grey. Designed for use in printed circuit boards, this versatile PCB connector facilitates reliable electrical connections. Ideal for applications requiring screw terminal blocks, it ensures secure, efficient wiring in electronic devices and systems.
AWG (min.) 26
AWG max. 18
Connector orientation Perpendicular (to the PCB)
Contact material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Factory colour Basalt grey
Height 17.10mm
Length 12.60mm
Manufacturer part # 54791080421D
Min. stripping length 10mm
Misc Attribute AKZ4791/8KD-2.54-V
No. of rows 1
Nominal current 6A
Nominal current - rounded value 6A
Nominal voltage 150V
Number of pins 8
Pins per row 8
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Width 22.86mm
Wire protection Yes
