PTR Hartmann 54791050421E Spring-Loaded Terminal 0.75mm² 5 Pins Basalt Grey

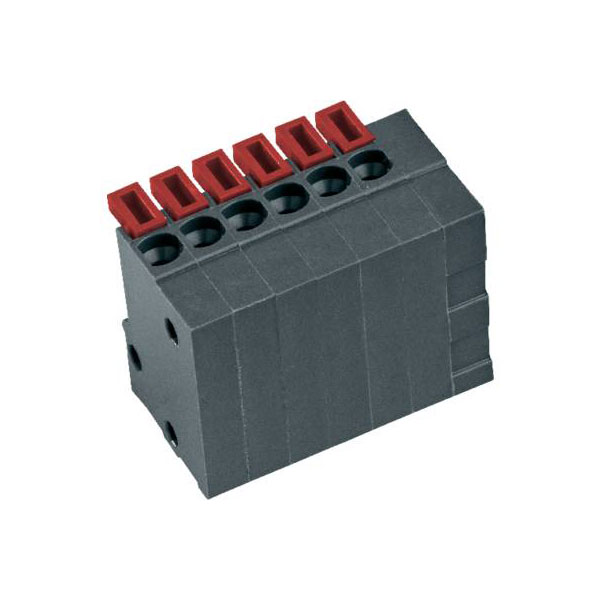

Image Representative of Range

PTR Hartmann 54791050421E Spring-Loaded Terminal 0.75mm² 5 Pins Basalt Grey

PTR
Order Code:

06-2913

Brand: PTR MPN: 54791050421E EAN-13: 2050001585196
Qty Unit Price (Ex VAT)
10+ £0.795
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
95 in stock, despatched in 4 working days

The PTR Hartmann 54791050421E is a spring-loaded terminal block with 5 pins and a 0.75 mm² capacity, finished in basalt grey. Manufactured by PTR Hartmann, this PCB connector is ideal for secure electrical connections in printed circuit boards. Its compact design makes it suitable for use in various electronic and industrial applications.
Pitch 2.54mm
No. of Ways 5
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 20 AWG
Wire Termination Screwless
AWG (min.) 26
AWG max. 18
Colour Grey
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Current Rating 6A
Factory colour Basalt grey
Height 15.24mm
Length 12.60mm
Min. stripping length 10mm
Misc Attribute AKZ4791/5KD-2.54-V
No. of Levels 1
Pins per row 5
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Voltage Rating 150V
Width 17.10mm
Wire protection Yes
