PTR Hartmann 54791040422F Terminal 0.75mm² 4 Pins Basalt Grey Spring-loaded

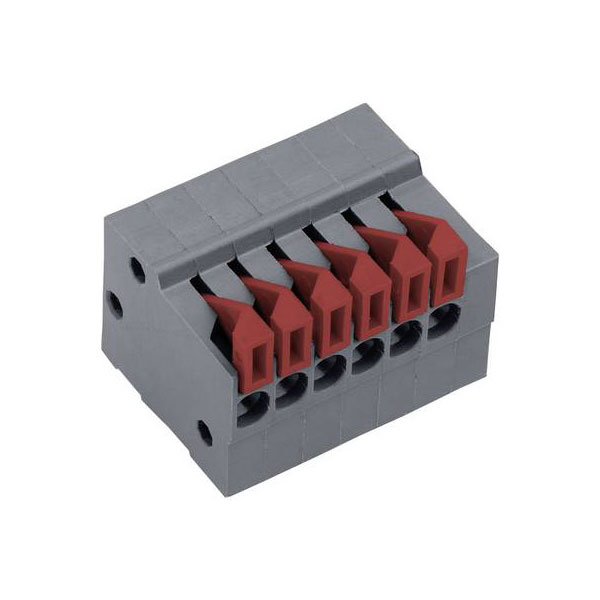

Image Representative of Range

PTR Hartmann 54791040422F Terminal 0.75mm² 4 Pins Basalt Grey Spring-loaded

PTR
Order Code:

06-2912

Brand: PTR MPN: 54791040422F EAN-13: 2050001585271
Qty Unit Price (Ex VAT)
10+ £0.649
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
59 in stock, despatched in 4 working days

PTR Hartmann's 54791040422F is a spring-loaded terminal with a 0.75 mm² capacity, featuring four pins. This basalt grey screw terminal block is commonly used as a PCB connector in various printed circuit boards. Ideal for secure connections, it is suitable for both industrial and electronic applications.
Pitch 2.54mm
No. of Ways 4
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 20 AWG
Wire Termination Screwless
AWG (min.) 26
AWG max. 18
Colour Grey
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Current Rating 6A
Factory colour Basalt grey
Height 13.70mm
Length 12.70mm
Min. stripping length 10mm
Misc Attribute AKZ4791/4KD-2.54-H
No. of Levels 1
Pins per row 4
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Voltage Rating 150V
Width 16.20mm
Wire protection Yes
