PTR Hartmann 54791030421F Terminal 0.75mm² 3 Pins Basalt Grey

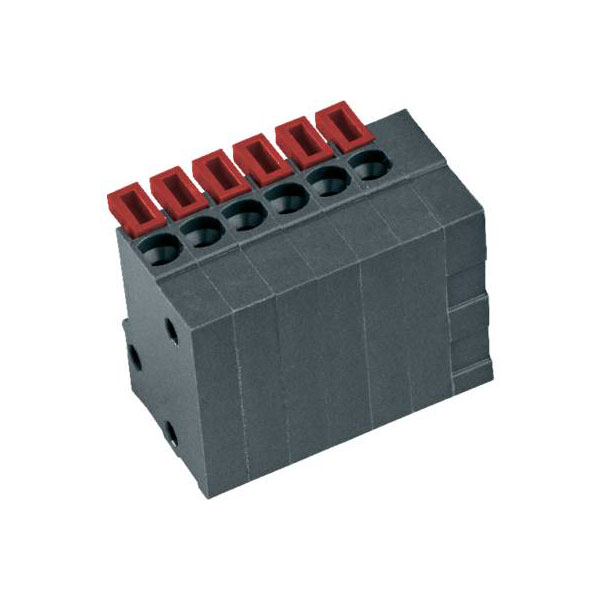

Image Representative of Range

PTR Hartmann 54791030421F Terminal 0.75mm² 3 Pins Basalt Grey

PTR
Order Code:

06-2909

Brand: PTR MPN: 54791030421F EAN-13: 2050001585172
Qty Unit Price (Ex VAT)
10+ £0.477
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
95 in stock, despatched in 4 working days

PTR Hartmann manufactures the 54791030421F spring-loaded terminal, featuring a 0.75 mm² capacity and three pins, finished in basalt grey. This component is ideal for use in printed circuit boards, offering secure connections and easy installation with its spring-loaded mechanism. It is typically used in electronics and electrical applications requiring reliable connectivity solutions.
Pitch 2.54mm
No. of Ways 3
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 20 AWG
Wire Termination Screwless
AWG (min.) 26
AWG max. 18
Colour Grey
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Current Rating 6A
Factory colour Basalt grey
Height 12.60mm
Length 10.16mm
Min. stripping length 10mm
Misc Attribute AKZ4791/3KD-2.54-V
No. of Levels 1
Pins per row 3
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Voltage Rating 150V
Width 17.10mm
Wire protection Yes
