PTR Hartmann 54791020421F Spring-loaded Terminal 0.75mm² 2 Pins Basalt Grey

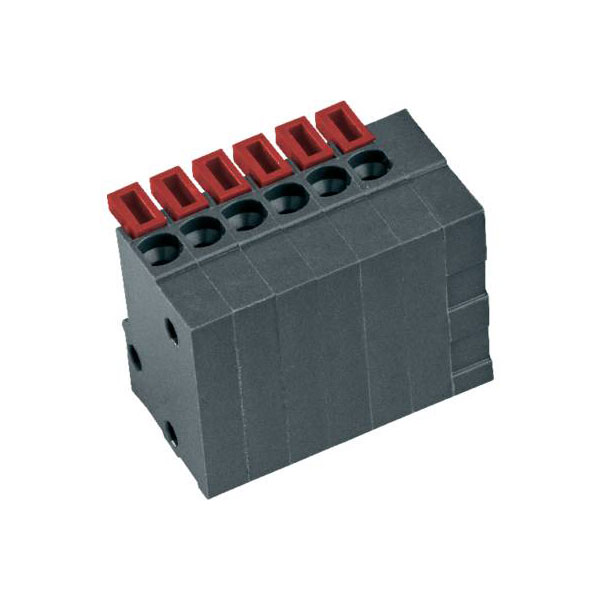

Image Representative of Range

PTR Hartmann 54791020421F Spring-loaded Terminal 0.75mm² 2 Pins Basalt Grey

PTR
Order Code:

06-2907

Brand: PTR MPN: 54791020421F EAN-13: 2050001585165
Qty Unit Price (Ex VAT)
20+ £0.338
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
203 in stock, despatched in 4 working days

The PTR Hartmann 54791020421F is a spring-loaded terminal designed for PCB connections, featuring 0.75 mm² capacity and two pins. It is basalt grey in colour, suitable for reliable electrical connections in compact electronics applications. This screw terminal block is commonly used in printed circuit boards for secure wire termination.
No. of Ways 2
No. of Levels 1
Voltage Rating 150V
Current Rating 6A
AWG (min.) 26
AWG max. 18
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Factory colour Basalt grey
Height 12.60mm
Length 7.62mm
Min. stripping length 10mm
Misc Attribute AKZ4791/2KD-2.54-V
Pins per row 2
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Width 17.10mm
Wire protection Yes
