PTR Hartmann 54191080051D Spring-loaded Terminal 0.75mm² 8 Pins Pebble Grey

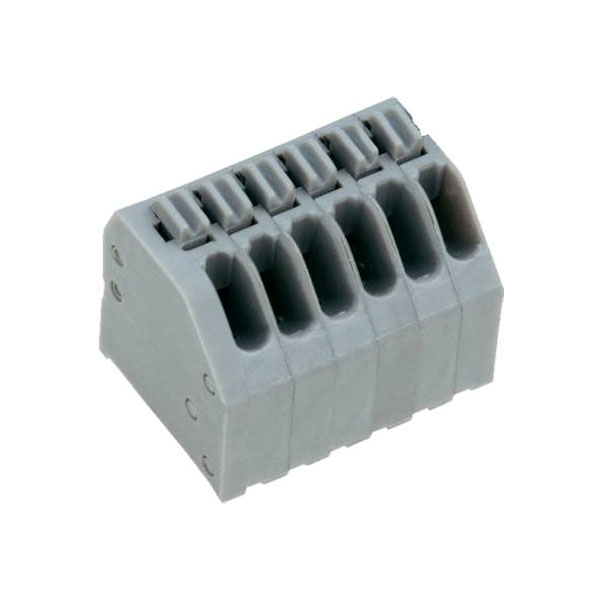

Image Representative of Range

PTR Hartmann 54191080051D Spring-loaded Terminal 0.75mm² 8 Pins Pebble Grey

PTR
Order Code:

06-2900

Brand: PTR MPN: 54191080051D EAN-13: 2050001585134
Qty Unit Price (Ex VAT)
10+ £0.557
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
94 in stock, despatched in 4 working days

The PTR Hartmann 54191080051D is a spring-loaded terminal with a capacity of 0.75 mm² and features 8 pins. It comes in a pebble grey colour, making it suitable for aesthetic integration in various electronic assemblies. This component is typically used in printed circuit boards for secure and reliable electrical connections.
No. of Ways 8
No. of Levels 1
Voltage Rating 300V
Current Rating 2A
AWG (min.) 26
AWG max. 20
Connector orientation At an angle (to the PCB)
Contact Material Bronze
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.50mm
Factory colour Pebble grey
Height 16.60mm
Length 12.00mm
Min. stripping length 9mm
Misc Attribute AK4191/8KDVP-2.5
Pins per row 8
Series AK4191
Stripping length (max.) 9mm
Type Spring-loaded terminal
Width 25.50mm
Wire protection Yes
