PTR Hartmann 54191070051E Terminal 0.75mm² 7 Pins Pebble Grey Spring-loaded 1pc

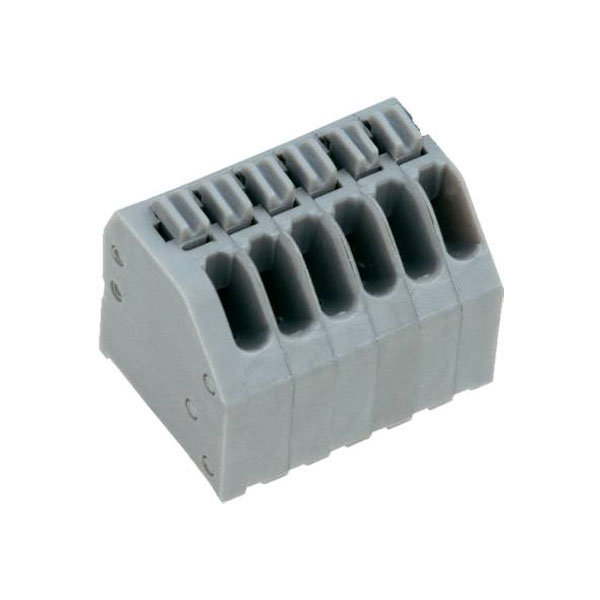

Image Representative of Range

PTR Hartmann 54191070051E Terminal 0.75mm² 7 Pins Pebble Grey Spring-loaded 1pc

PTR
Order Code:

06-2899

Brand: PTR MPN: 54191070051E EAN-13: 2050001585127
Qty Unit Price (Ex VAT)
10+ £0.458
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
74 in stock, despatched in 4 working days

The PTR Hartmann 54191070051E is a spring-loaded terminal block with seven pins, designed for wire connections up to 0.75 mm². It features a pebble grey finish, ideal for printed circuit board applications. Typical uses include secure electrical connections in various electronic devices.
Pitch 2.5mm
No. of Ways 7
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 20 AWG
Wire Termination Screwless
AWG (min.) 26
AWG max. 20
Colour Grey
Connector orientation At an angle (to the PCB)
Contact Material Bronze
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.50mm
Current Rating 2A
Factory colour Pebble grey
Height 16.60mm
Length 12.00mm
Min. stripping length 9mm
Misc Attribute AK4191/7KDVP-2.5
No. of Levels 1
Pins per row 7
Series AK4191
Stripping length (max.) 9mm
Type Spring-loaded terminal
Voltage Rating 300V
Width 19.00mm
Wire protection Yes
