PTR Hartmann 50692120021E Screw Terminal 0.75 mm² 12 Pins Green 1pc

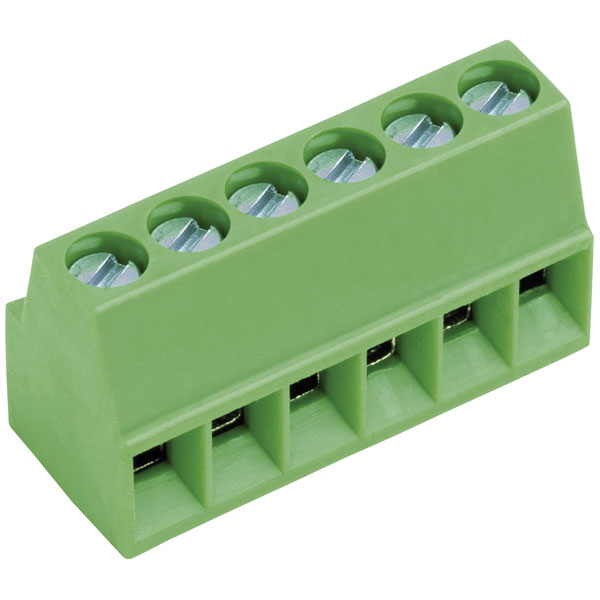

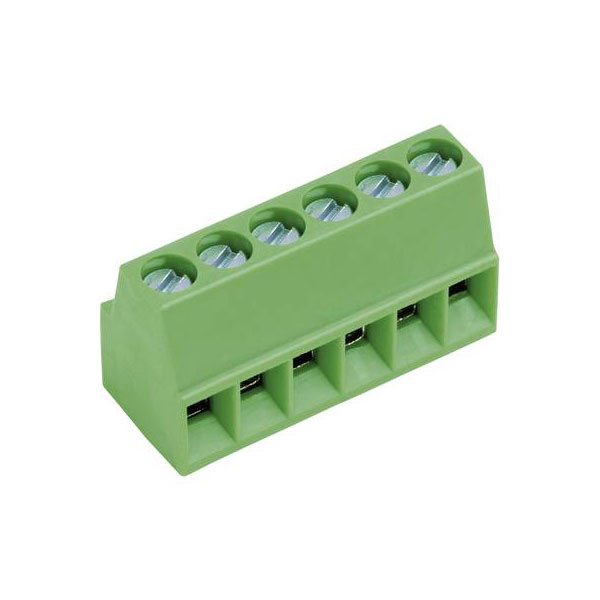

Image Representative of Range

PTR Hartmann 50692120021E Screw Terminal 0.75 mm² 12 Pins Green 1pc

PTR
Order Code:

06-2827

Brand: PTR MPN: 50692120021E EAN-13: 2050001584700
Qty Unit Price (Ex VAT)
3+ £1.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3 in stock, despatched in 4 working days

PTR Hartmann manufactures the 50692120021E screw terminal featuring 12 pins and designed for a 0.75 mm² wire size, in a green colour. This screw terminal, often used as a PCB connector, provides secure connections for printed circuit boards. It is typically applied in various electronic projects and industrial applications for reliable wire-to-board connections.
No. of Ways 12
No. of Levels 1
Voltage Rating 150V
Current Rating 7A
Actuation direction Perpendicular (to the PCB)
AWG (min.) 30
AWG max. 18
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Factory colour Green
Height 12.00mm
Length 6.50mm
Min. stripping length 4mm
Misc Attribute AKZ692/12-2.54-V-GRÜN
Pins per row 12
Series AKZ692
Stripping length (max.) 4mm
Type Screw terminal
Width 30.88mm
Wire protection Yes
