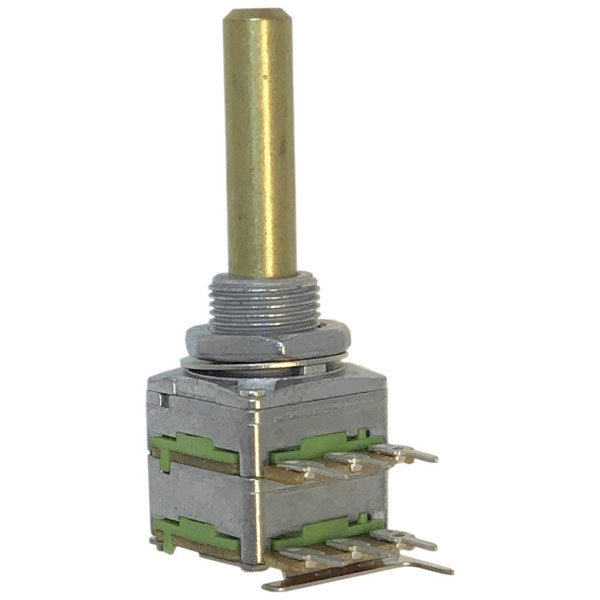

Potentiometer RD1602F-20F4-30R-B25K-602 Rotary Single Turn 25k Ohm

Potentiometer Service RD1602F-20F4-30R-B25K-602 is a high-precision rotary single-turn slide potentiometer, commonly utilised in applications requiring the fine adjustment of electrical resistance, such as in audio equipment and laboratory instrumentation. This variable resistor offers a resistance value of 25k ohms, providing reliable performance in regulating current and voltage within electronic circuits. Engineered for robustness, the RD1602F-20F4-30R-B25K-602 ensures consistent operation and longevity, making it suitable for both industrial and consumer electronics where precise control is necessary. With an alternate description as 1606352, this component supports a wide range of applications by facilitating accurate control over electrical parameters.

Type	Single turn rotary pot
Resistance	25kΩ
No of Turns	1
Power Rating	0.2W
Axle Diameter	6mm
Connection	Print
Content	1
Lever Length	30mm
Maximum Temperature	+70°C
Mechanical Angle	270°
Minimum Temperature	-10°C
Output	Stereo
Product Type	Single turn rotary pot
Resistance characteristic	linear
Thread Size	M10
Tolerance ±	20%
