Pizzato Elettrica PA20201-M2 Foot Switch 250V AC 6A 1-Pedal IP65 Safety

Pizzato Elettrica
Standard range
Order Code:

12-7701

Brand: Pizzato Elettrica MPN: PA 20201-M2 EAN-13: 8018851133459
Qty Unit Price (Ex VAT)
1+ £45.96
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

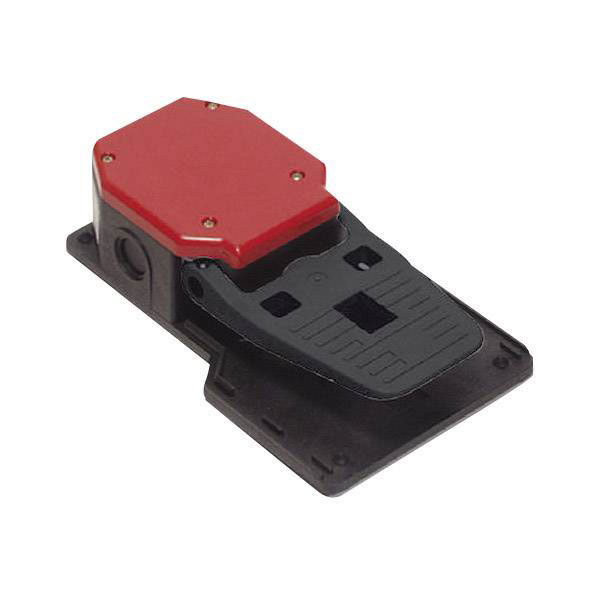

The Pizzato Elettrica PA 20201-M2 foot switch is rated for 250 V AC and 6 A, and features a single pedal with two makers and two breakers. It is designed with IP65 protection, making it suitable for industrial environments where dust and water resistance is crucial. Common applications include machinery control in manufacturing settings, allowing operators to activate machinery hands-free.
Type Foot switch
Actuating force 16N
Casing Without pedal protection
Casing/button colour Red
Connection Screws
Functions momentary
IP rating IP65
Material Plastic
Material (details) Housing of Techno polymer
Max. temperature +80°C
Min. temperature -25°C
Misc Attribute 1 Spring contact (2 Ö / 2 S)
Operation type 1-pedal
RoHS-compliant Yes
Switch position 2 x Off/(On)
Switching capacity 400 V/AC/4 A, 500 V/AC/1 A, UL US 250 V/AC/6 A, 24 V/DC/6 AA
Switching Current 6A
Switching current (max.) 6A
Switching voltage 250V AC
Temperature range -25 - +80°C
Thread Size M20
