Pizzato Elettrica PA20101-M2 Foot Switch 250V 6A IP65 1-Pedal Safety Use

Pizzato Elettrica
Standard range
Order Code:

12-7700

Brand: Pizzato Elettrica MPN: PA 20101-M2 EAN-13: 8018851124846
Qty Unit Price (Ex VAT)
1+ £37.69
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
23 in stock, despatched in 4 working days

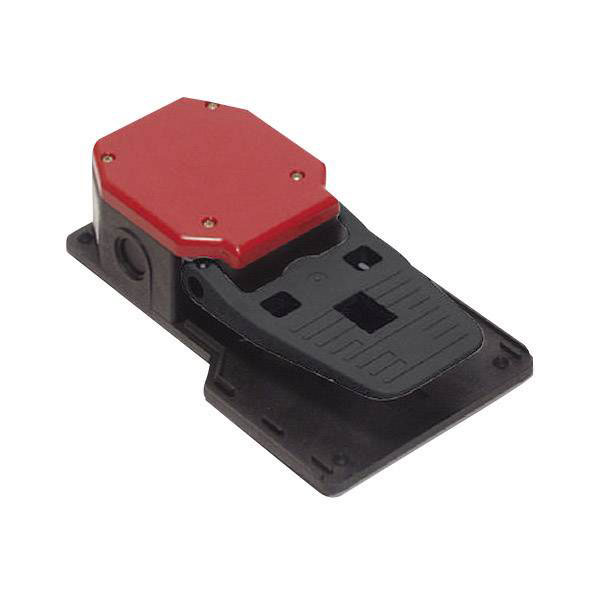

The Pizzato Elettrica PA 20101-M2 is a foot switch designed for use in industrial applications, rated at 250 V AC and 6 A. This single-pedal device features an IP65 protection rating, promising durability against dust and low-pressure water jets. Ideal for hands-free operation in machinery control, it incorporates a 1NO+1NC spring contact for reliable performance.
Type Foot switch
Actuating force 16N
Casing Without Pedal protection
Casing/button colour Red
Connection Screws
Functions momentary
IP rating IP65
Material Plastic
Material (details) Housing of Techno polymer
Max. temperature +80°C
Min. temperature -25°C
Misc Attribute 1 Spring contact(1 Ö / 1 S)
Misc Attribute 2 PA 20101-M2
Operation type 1-pedal
RoHS-compliant Yes
Switch position 1 x Off/(On)
Switching capacity 400 V/AC/4 A, 500 V/AC/1 A, UL US 250 V/AC/6 A, 24 V/DC/6 AA
Switching Current 6A
Switching current (max.) 6A
Switching voltage 250V AC
Temperature range -25 - +80°C
Thread Size M20
